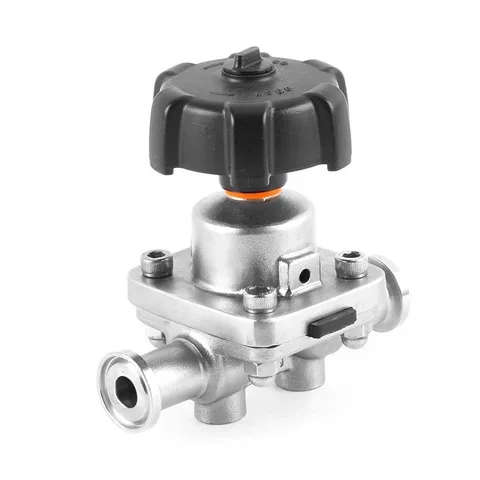

Manual Tri-Clamp Diaphragm Valve
The manual clamp-end diaphragm valve combines a top handwheel with a body having clamp ends; turning the handwheel opens or closes the diaphragm.

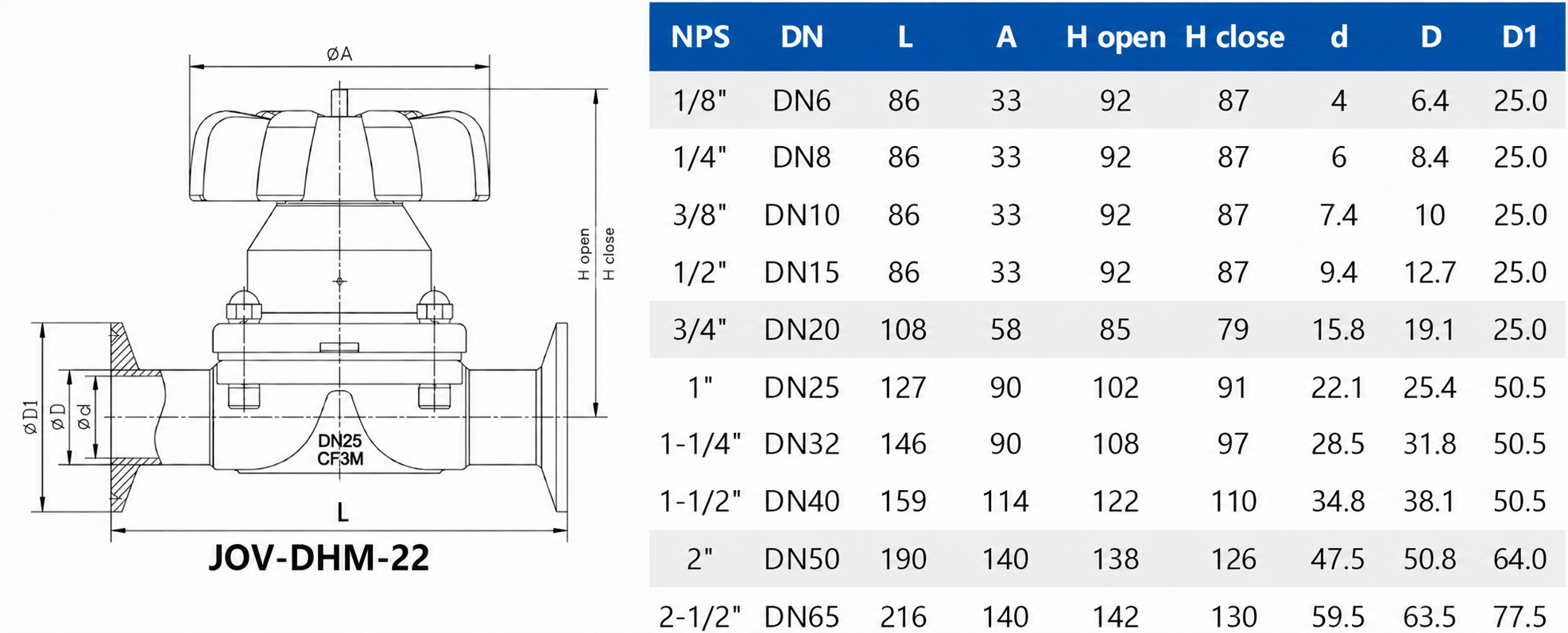

Model | JOV-DHM-22 |
|---|---|
Material | SS316L |
Connection | Clamped |
Specification | DN15-DN80 |
Product overview
Product structure
A Tri-Clamp joint connects mating ferrules with a separate clamp and gasket.
Manual Tri-Clamp Diaphragm Valve. A diaphragm valve uses a flexible diaphragm to separate the operating mechanism from the flow passage. Select the body arrangement and diaphragm for the intended line.
Selection checks
- Body and port arrangement
- Diaphragm material and medium compatibility
- End connections and actuation
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- SS316L
Product series
- Media / applications
- Dairy, Beverage, Pharmacy (Product series)
- Seal material
- EPDM+PTFE (Product series)
- Diaphragm materials and temperature
- ASSEMBLING Diaphragm:EPDM(-40 -150) PTFE/EPDM(-10-150) °C (Series diaphragm assembly)
- Internal and external surface options
- OD/ID mirror polished. ID Ra<0.8um. OD- Sand Blasted .or E/P or other ,ID C Ra<0.5um(SF1) or E/P Ra0.3um(SF4) can be requirement. (Product series)
