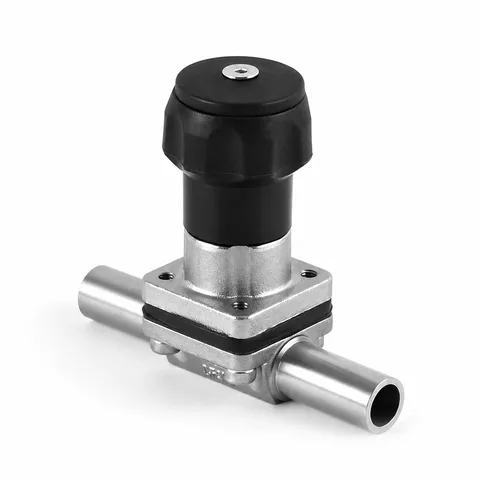

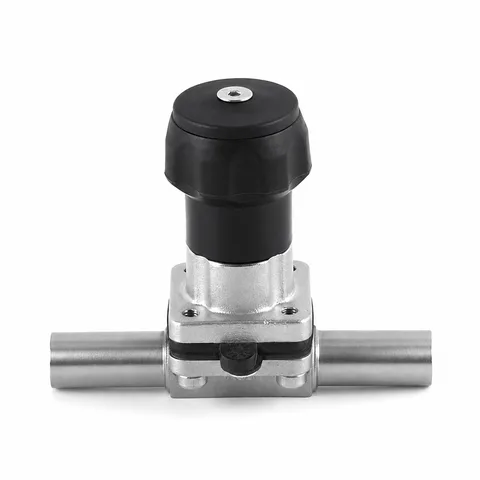

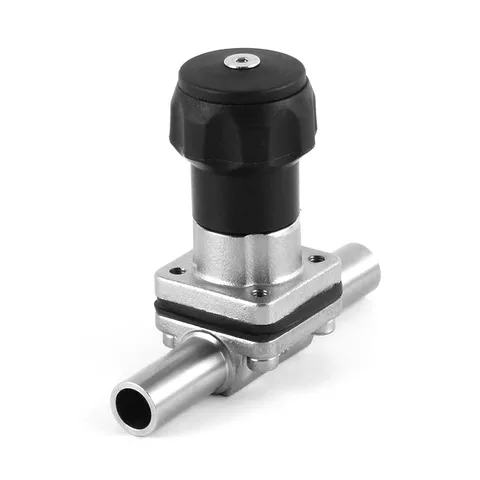

Mini Diaphragm Valve, Plastic Handwheel
The mini diaphragm valve combines a plastic handwheel with a compact body and tube ends for mating pipework.
Model | DFVM3-1-22 |
|---|---|
Material | SS316L |
Connection | Welding |
Specification | DN8, DN10 |
Product overview
Product structure
The operating assembly moves the diaphragm at the valve body.
Mini Diaphragm Valve, Plastic Handwheel. A diaphragm valve uses a flexible diaphragm to separate the operating mechanism from the flow passage. Select the body arrangement and diaphragm for the intended line.
Selection checks
- Body and port arrangement
- Diaphragm material and medium compatibility
- End connections and actuation
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- AISI304, AISI316L
- Material Options
- SS316L
Product series
- Media / applications
- Beer, Dairy, Beverage, Pharmacy (Product series)
- Seal material
- EPDM+PTFE (Product series)
- Interface standard options
- 3A/DIN/SMS/ISO/IDF (Product series)
