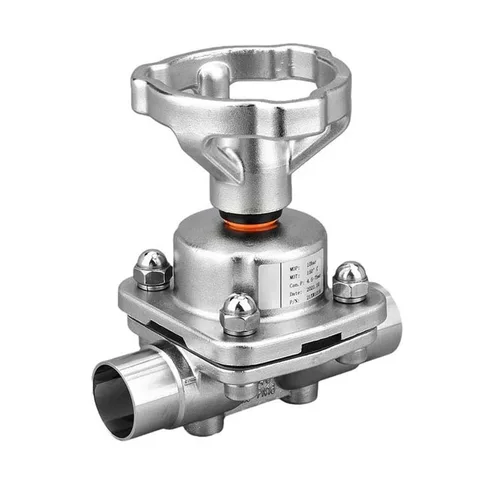

Manual Weld-End Diaphragm Valve
The manual weld-end diaphragm valve uses a stainless steel handwheel and welding tube ends for joining mating pipe sections.
Material | SS316L |
|---|---|
Connection | Welding |
Actuation | Manual |
Specification | DN15-DN80 |
Product overview
Product structure

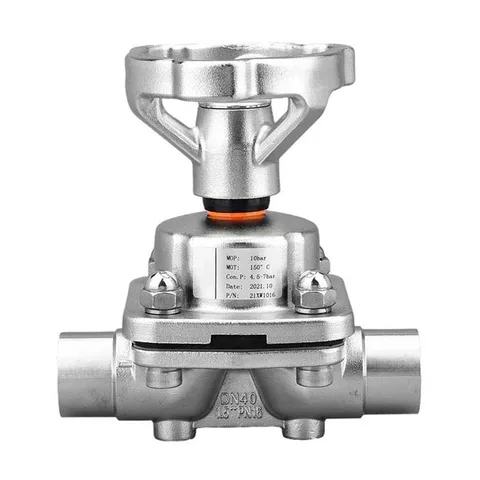

The weld ends form the pipe-side joints.
Manual Weld-End Diaphragm Valve. A diaphragm valve uses a flexible diaphragm to separate the operating mechanism from the flow passage. Select the body arrangement and diaphragm for the intended line.
Selection checks
- Body and port arrangement
- Diaphragm material and medium compatibility
- End connections and actuation
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- AISI304, AISI316L
- Material Options
- SS316L
Connections & dimensions
- Connection
- Welding
Product series
- Media / applications
- Beer, Dairy, Beverage, Pharmacy (Product series)
- Seal material
- EPDM+PTFE (Product series)
- Interface standard options
- DIN, ISO, 3A, IDF (Product series)
