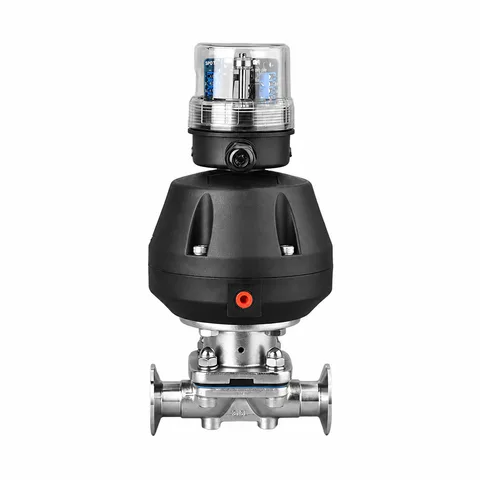

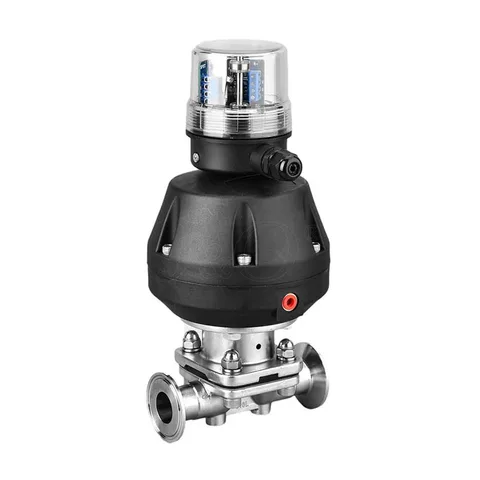

Tri-Clamp Diaphragm Valve with Position Feedback
The clamp-end diaphragm valve with position feedback mounts the feedback device above the pneumatic actuator, with clamp pipe interfaces at both ends.
Material | SS316L |
|---|---|
Connection | Clamped |
Actuation | Pneumatic |
Product overview
Product structure
A Tri-Clamp joint connects mating ferrules with a separate clamp and gasket. The identified control arrangement includes a position-feedback feature.
Tri-Clamp Diaphragm Valve with Position Feedback. A diaphragm valve uses a flexible diaphragm to separate the operating mechanism from the flow passage. Select the body arrangement and diaphragm for the intended line.
Selection checks
- Body and port arrangement
- Diaphragm material and medium compatibility
- End connections and actuation
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- AISI304, AISI316L
- Material Options
- SS316L
Product series
- Media / applications
- Beer, Dairy, Beverage, Pharmacy. (Product series)
- Seal material
- EPDM+PTFE (Product series)
- Interface standard options
- DIN, ISO, 3A, IDF (Product series)
