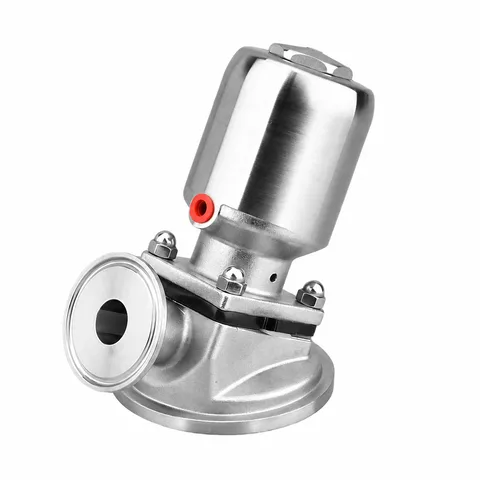

Pneumatic Tank-Bottom Diaphragm Valve
The pneumatic tank-bottom diaphragm valve combines a vessel connection and side discharge interface with a body-mounted actuator.
Model | JOV-DHTBPS-22 |
|---|---|
Material | SS304, SS316L |
Connection | Clamped |
Actuation | Pneumatic |
Product overview
Product structure
The body is arranged for a tank-bottom connection. A pneumatic actuator forms the operating assembly.
Pneumatic Tank-Bottom Diaphragm Valve. A diaphragm valve uses a flexible diaphragm to separate the operating mechanism from the flow passage. Select the body arrangement and diaphragm for the intended line.
Selection checks
- Body and port arrangement
- Diaphragm material and medium compatibility
- End connections and actuation
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- SS304, SS316L
- Body Material Options
- AISI316L
Construction & finish
- Actuation
- Pneumatic
Product series
- Diaphragm material options
- EPDM,Siliton,Viton,EPDM+PTFE (Series diaphragm assembly)
- Interface standard options
- DIN,3A,SMS,ISO,IDF (Product series)
