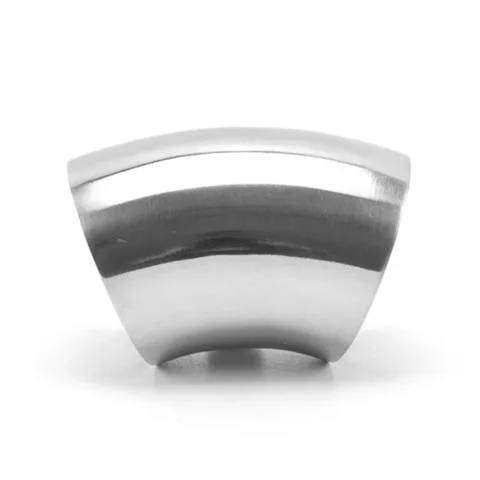

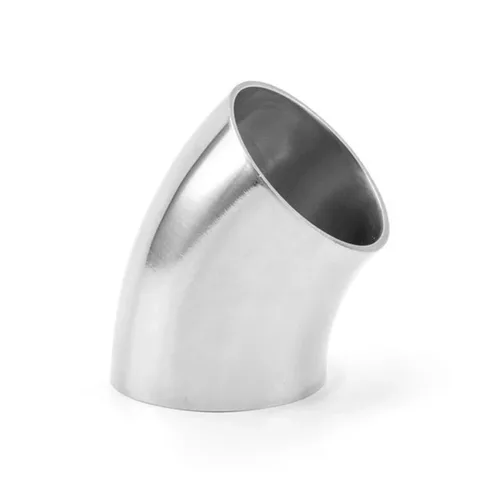

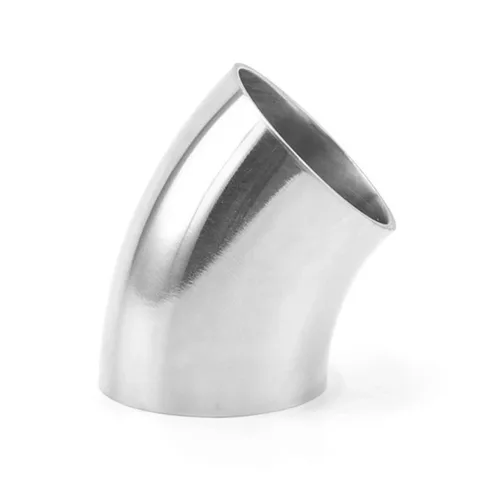

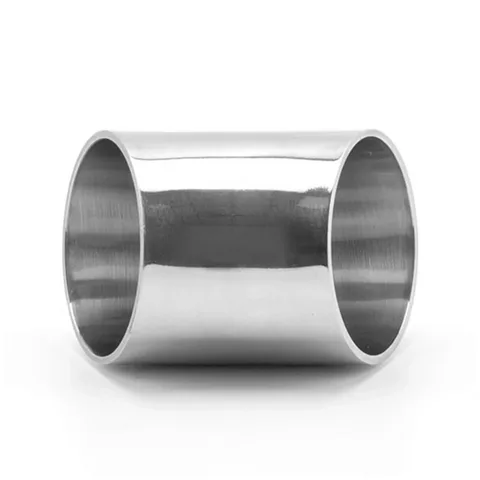

Weld-End 45° Short-Radius Elbow
The 45-degree short weld elbow changes pipe direction through a compact bend between welding ends.
Material | SS304, SS316L |
|---|---|
Connection | Welded |
Specification | 1/2''-10'' |
Shape | Round |
Standard or Nonstandard | 3A,SMS,DIN,ISO,IDF |
Product overview
Product structure
The bend changes direction by 45°. The bend is identified by its short-radius geometry. The weld ends form the pipe-side joints.
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- 304; 316L
Construction & finish
- Angle
- 45 degrees
Connections & dimensions
- Connection
- Weld-End
Need a different size, connection or document?
Discuss your requirements
