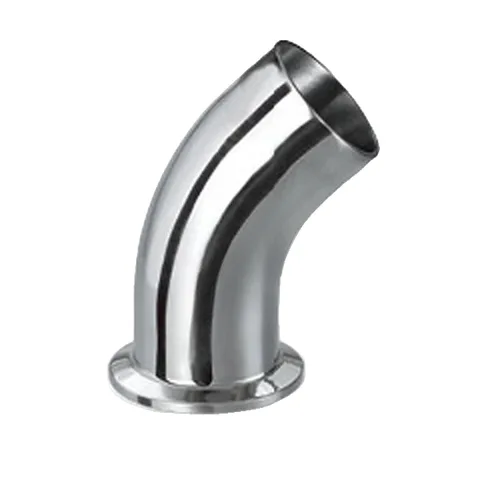

Weld-to-Clamp 45° Elbow
The 45-degree long clamp-weld elbow combines a ferrule flange and a welding end on one curved tube.
Model | 2WCWK-3A |
|---|---|
Material | SS304 SS316 |
Connection | Weld-Clamp |
Specification | 1/4''-6'' |
Shape | Round |
Standard or Nonstandard | 3A |
Product overview
Product structure
A 45° elbow with one plain welding end and one clamp end. Specify the dimensions and mating connection at each end independently.
Selection checks
- Tube outside diameter and wall thickness
- Bend angle, radius and installation envelope
- End preparation and the mating connection
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- AISI304, AISI316L
- Material Options
- SS304 SS316
Connections & dimensions
- Connection
- Clamp,Weld
- Connection
- Weld-Clamp
Product series
- Media / applications
- Water, Oil (Product series)
- Surface finish options
- Mirror Polish, Stain Finishing (Product series)
- Interface standard options
- 3A (Product series)
Need a different size, connection or document?
Discuss your requirements
