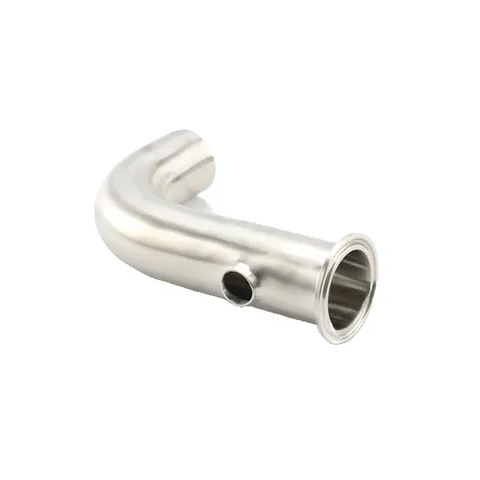

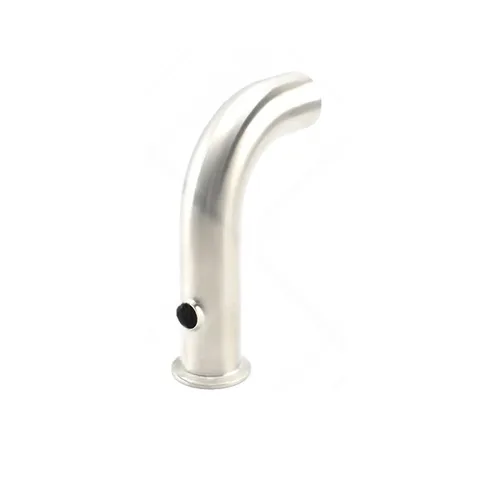

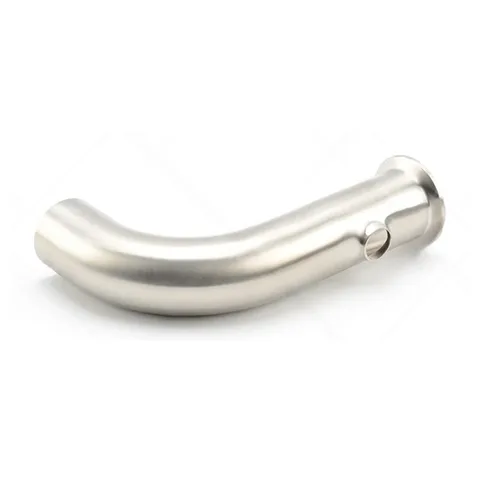

Three-Port Clamp-and-Weld Elbow
The three-way clamp-weld elbow has a branch port on a curved tube and combines ferrule and welding ends.
Material | SS304, SS316L |
|---|---|
Connection | Weld / Clamp |
Specification | 1/2''-12'' |
Shape | Round |
Standard or Nonstandard | Nonstandard |
Product overview
Product structure
Bent tube with a side branch and mixed clamp/weld main ends. Confirm branch dimensions and connection details for the ordered component.
Selection checks
- Tube outside diameter and wall thickness
- Bend angle, radius and installation envelope
- End preparation and the mating connection
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- SS304, SS316L
Connections & dimensions
- Connection
- Weld / Clamp
Product series
- Media / applications
- Water, Oil (Product series)
- Surface finish
- mirror polish,matte polish (Product series)
