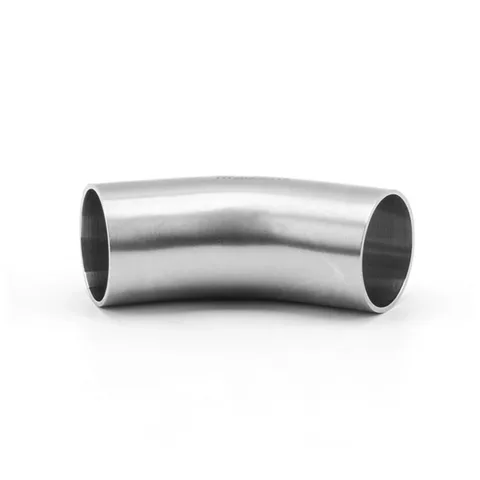

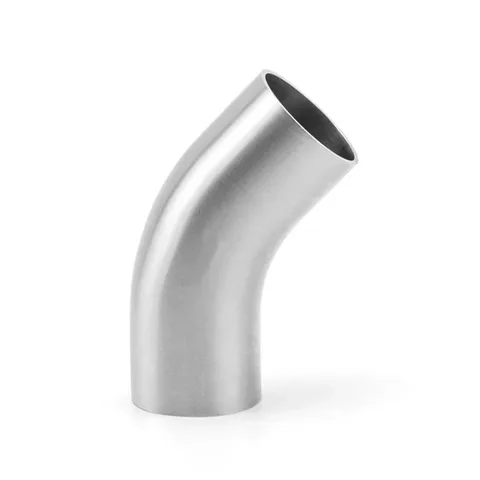

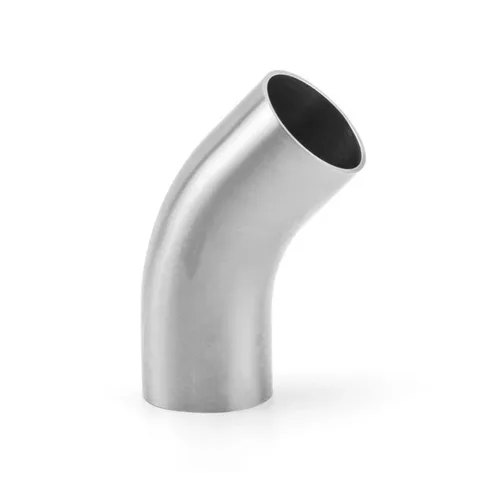

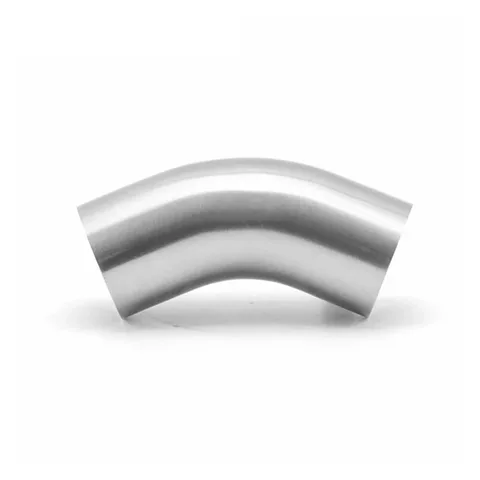

Weld-End 45° Long-Radius Elbow
The 45-degree long weld elbow changes pipe direction through an extended bend with welding ends.
Material | SS304, SS316L |
|---|---|
Connection | Weld |
Specification | 1''-6'' |
Shape | Round |
Standard or Nonstandard | 3A,DIN,SMS,ISO,IDF |
Product overview
Product structure
The bend changes direction by 45°. The bend is identified by its long-radius geometry. The weld ends form the pipe-side joints.
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- 304; 316L
Construction & finish
- Angle
- 45 degrees
- Bend Angle
- 45°
Connections & dimensions
- Connection
- Weld-End
