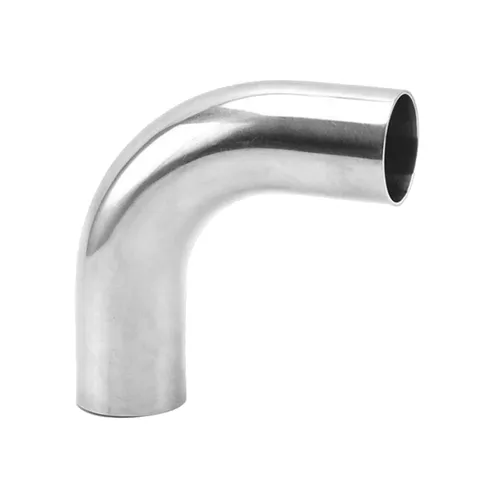

Weld-End 90° Long-Radius Elbow
The 90-degree long weld elbow connects perpendicular pipe sections through an extended bend profile.
Material | SS304 SS316 |
|---|---|
Connection | weld |
Specification | 12.7~152mm |
Shape | Round |
Standard or Nonstandard | SMS |
Product overview
Product structure
The bend changes direction by 90°. The bend is identified by its long-radius geometry. The weld ends form the pipe-side joints.
Selection checks
- Tube outside diameter and wall thickness
- Bend angle, radius and installation envelope
- End preparation and the mating connection
Weld-end installation
Confirm both tube ends, tangent lengths and the centreline radius against a dimensioned drawing. Long-radius identity alone does not define a numerical radius or guarantee fit within the available installation space.
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- AISI304, AISI316L
Connections & dimensions
- Connection
- weld ends
Construction & finish
- Bend Angle
- 90°
- Nominal Radius Type
- Long Radius
