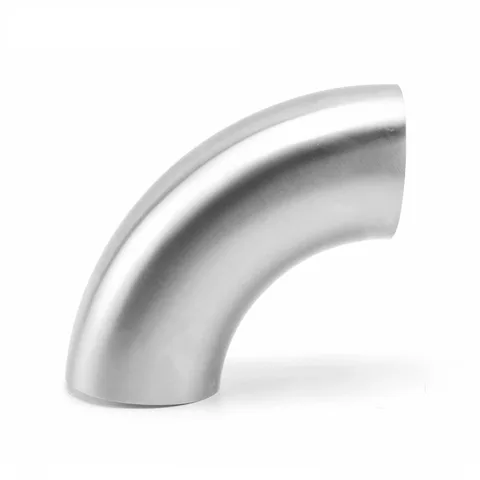

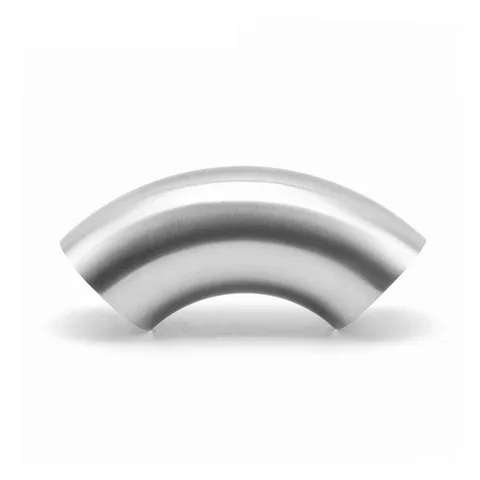

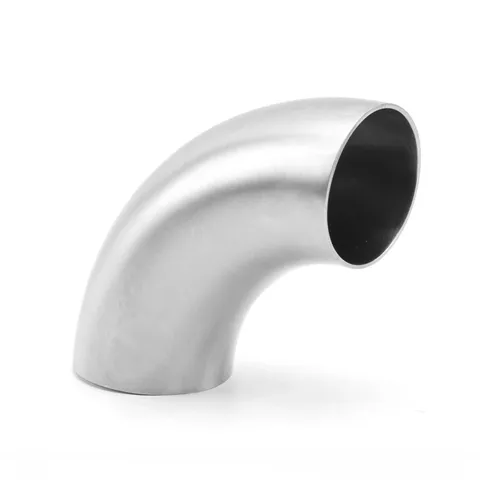

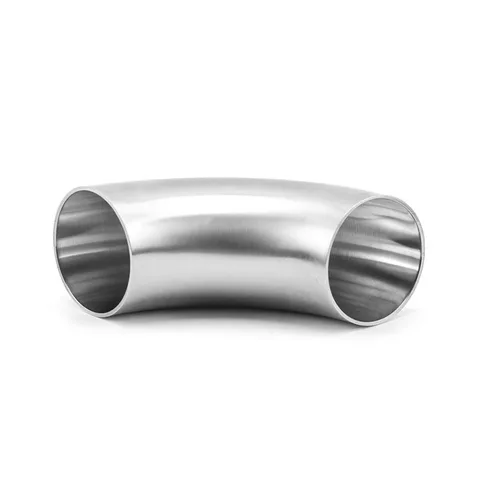

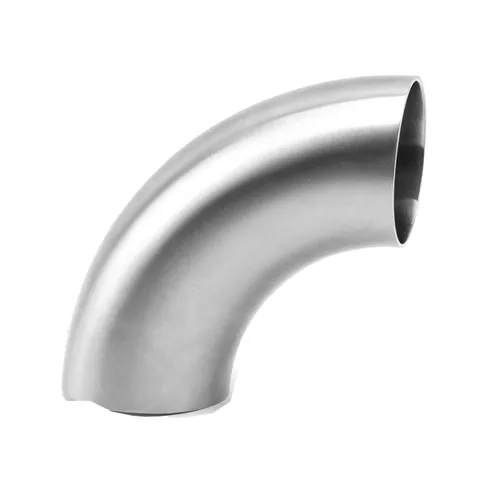

Weld-End 90° Short-Radius Elbow
The 90-degree short weld elbow joins two pipe sections through a compact turn.
Material | SS304, SS316L |
|---|---|
Connection | weld |
Specification | 1/2''-12'' |
Shape | Round |
Product overview
Product structure
The bend changes direction by 90°. The bend is identified by its short-radius geometry. The weld ends form the pipe-side joints.
Selection checks
- Tube outside diameter and wall thickness
- Bend angle, radius and installation envelope
- End preparation and the mating connection
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- AISI304, AISI316L
Connections & dimensions
- Connection
- weld
Construction & finish
- Bend Angle
- 90°
- Nominal Radius Type
- Short Radius
