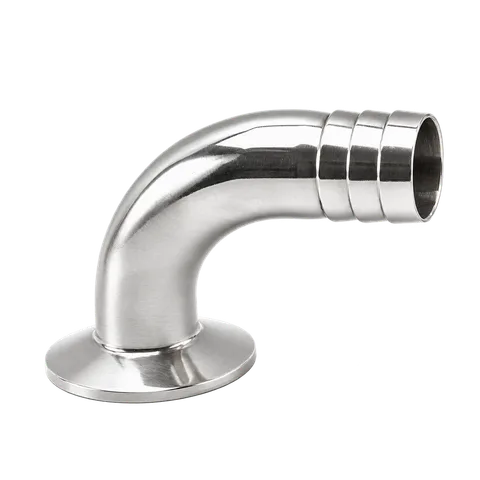

Compact 90° Clamp Hose-Barb Elbow — product view

Compact 90° Clamp Hose-Barb Elbow

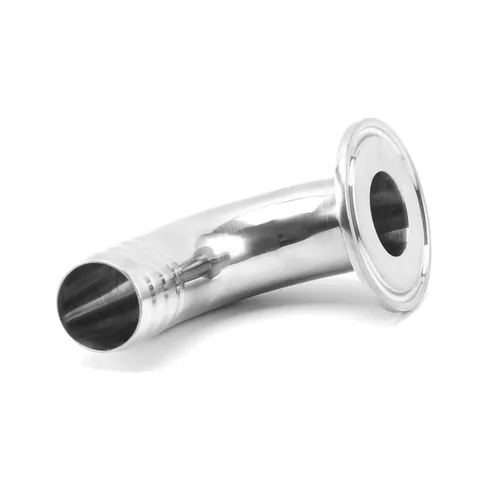

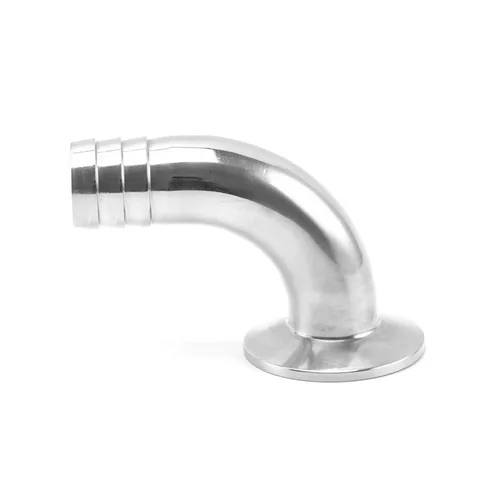

A compact 90° bend connects a short ribbed hose tail to a clamp face.

Material

SS304, SS316L

Connection

Clamped

Shape

90 Degree

Request a quote View specifications

Construction and connections

The compact elbow combines a clamp ferrule and a short ribbed hose tail in a single 90° fitting. The sealing face joins a matching ferrule-and-gasket connection, while the hose tail changes the hose direction at the bend. This compact profile is separate from the longer swept hose elbow.
