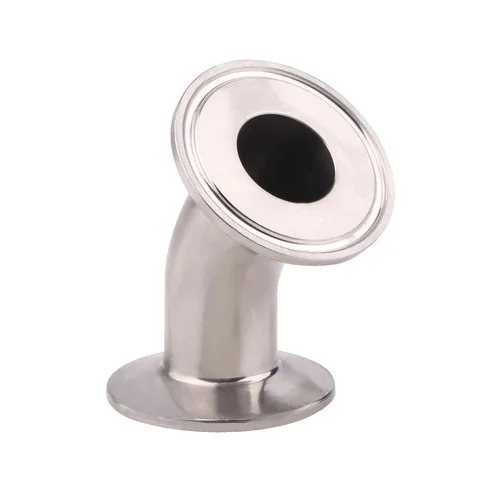

Tri-Clamp 45° Elbow
A 45° tube fitting for an angled pipe transition, with removable clamp joints at both ends.
Connection | Tri-Clamp |
|---|
Select an option to include it in your enquiry.
Product overview
Product structure
The bend changes direction by 45°. A Tri-Clamp joint connects mating ferrules with a separate clamp and gasket.
45-degree clamp elbow for connecting two pipes or tubes at an angle.
Fitting connects to tubing on both ends.
This elbow fitting, also called an "ell," connects tubes at a 45-degree angle to change the direction of flow between pipes or tubes, providing a non-permanent seal with take-down access.
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Connections & dimensions
- Connection
- Tri-clamp
Dimension data and symbol key
Dimensional reference
Pipe OD | Ferrule OD | Fits Tri-clamp |
|---|---|---|
25mm | 50.5MM | 1.5" |
38mm | 50.5MM | 1.5" |
50.5mm | 64MM | 2" |
