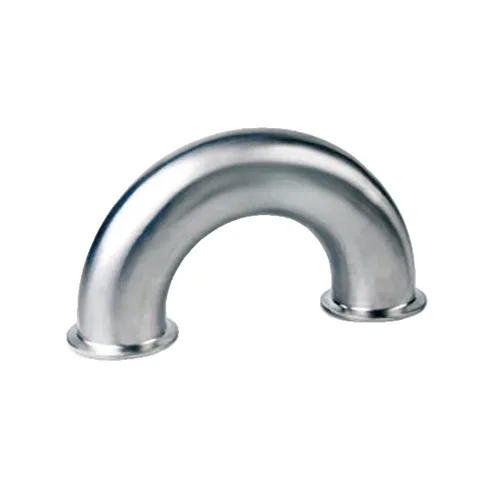

Tri-Clamp 180° U-Bend
The 180-degree clamp U-elbow has ferrule flanges at both ends for mating pipe sections on the same side.
Material | SS304 SS316 |
|---|---|
Connection | clamp |
Specification | 1/4''-6'' |
Shape | round |
Product overview
Product structure
A 180° U-bend with clamp ends for reversing a tube run. Confirm the bend envelope and both ferrule dimensions; a standards designation alone does not establish interchangeability.
Selection checks
- Tube outside diameter and wall thickness
- Bend angle, radius and installation envelope
- End preparation and the mating connection
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- AISI304, AISI316L
- Material Options
- SS304 SS316
Connections & dimensions
- Connection
- clamp
Product series
- Media / applications
- Water, Oil (Product series)
- Surface finish options
- mirror polish, stain finishing (Product series)
- Interface standard options
- 3A (Product series)
