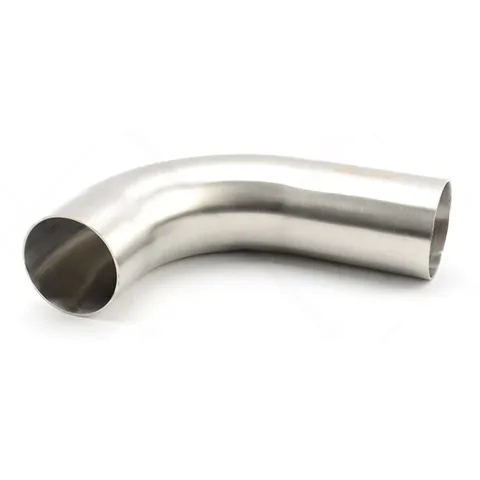

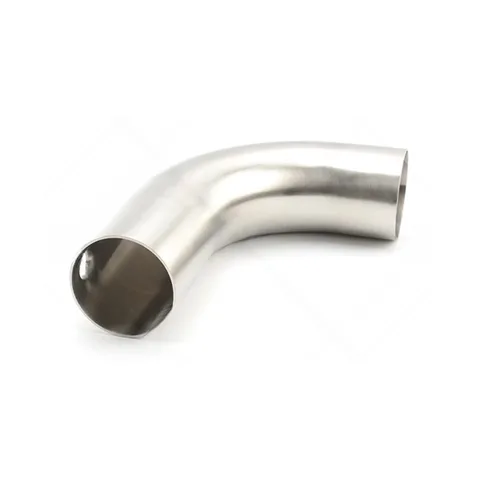

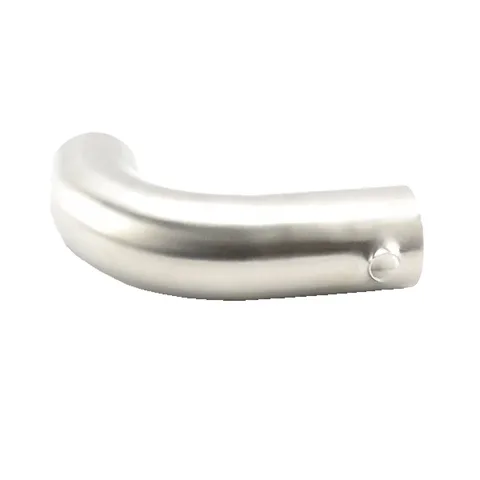

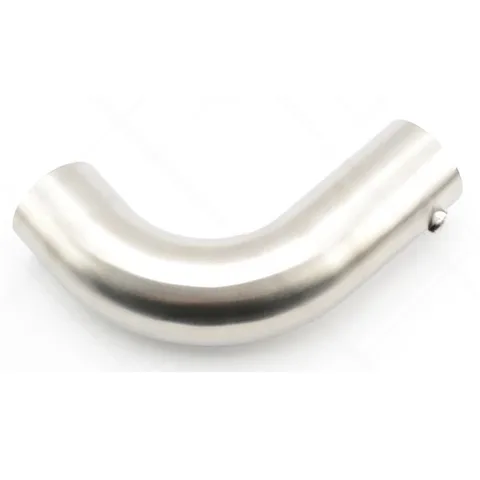

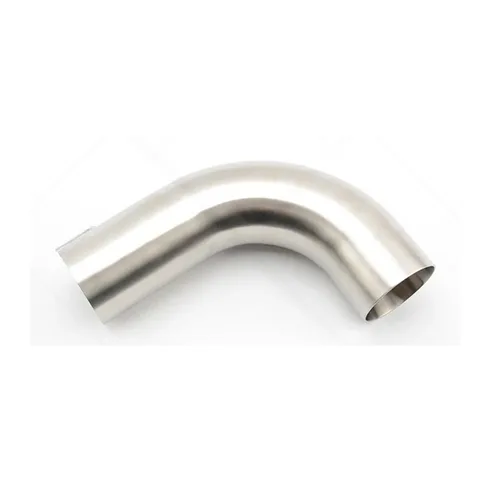

Weld-End Reducing 90° Elbow
The short reducing elbow joins different pipe diameters through a curved tube section.
Material | SS304, SS316L |
|---|---|
Connection | Weld |
Shape | round |
Standard or Nonstandard | Nonstandard |
Product overview
Product structure
Custom reducing elbow with plain welding ends. End diameters, bend radius and wall thickness must be confirmed for the ordered part.
Selection checks
- Tube outside diameter and wall thickness
- Bend angle, radius and installation envelope
- End preparation and the mating connection
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- SS304, SS316L
Connections & dimensions
- Connection
- Weld
Product series
- Media / applications
- Water, Oil (Product series)
- Surface finish
- mirror polish,matte polish (Product series)
Need a different size, connection or document?
Discuss your requirements
