Solenoid Tri-Clamp Diaphragm Valve (Normally Open / Closed Variants)

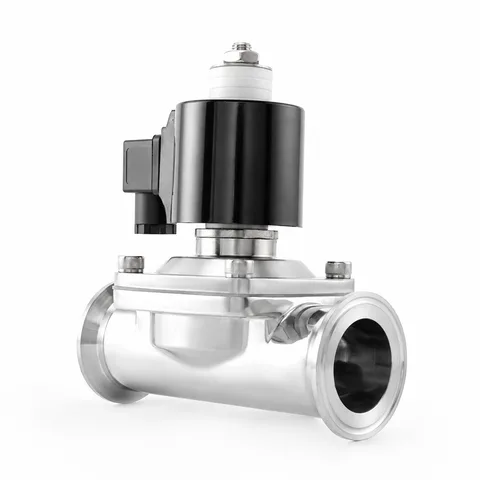

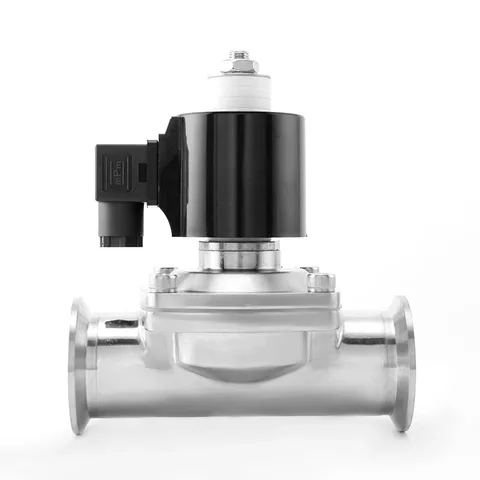

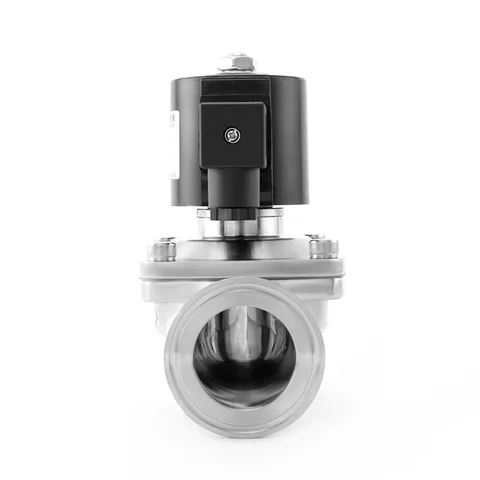

The solenoid clamp-end diaphragm valve has a top electromagnetic drive assembly on a body with clamp pipe connections.
Model | JOV-SV-22 |
|---|---|
Material | SS304, SS316, SS316L |
Connection | Clamp,Weld |
Product overview
Product structure
The diaphragm controls the fluid passage while the solenoid belongs to the operating arrangement. Normally open and normally closed versions are separate control configurations.
Solenoid Tri-Clamp Diaphragm Valve (Normally Open / Closed Variants). A diaphragm valve uses a flexible diaphragm to separate the operating mechanism from the flow passage. Select the body arrangement and diaphragm for the intended line.
Selection checks
- Body and port arrangement
- Diaphragm material and medium compatibility
- End connections and actuation
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- SS304, SS316, SS316L
- Body Material Options
- SS304, SS316, SS316L
Product series
- Media / applications
- Water, Gas and Clean Water Sources (Product series)
- Temperature range
- -5~80 °C (Product series)
- Supply voltage options
- DC12~220V; AC24V~380V (Series electrical assembly)
- Normally open / closed pressure ranges
- 0~1.0(NC),0~0.8(NO) MPa (Normally open and normally closed configurations)
- Media viscosity
- Less than 50C St (customized if greater than) (Product series)
- Coil protection options
- Plastic sealed coil IP64/Underwater coil IP67 (Series electrical assembly)
- Wiring options
- Wire Holder Type, Lead type,Plug type (Series electrical assembly)
