Tri-Clamp Diaphragm Valve with Positioner

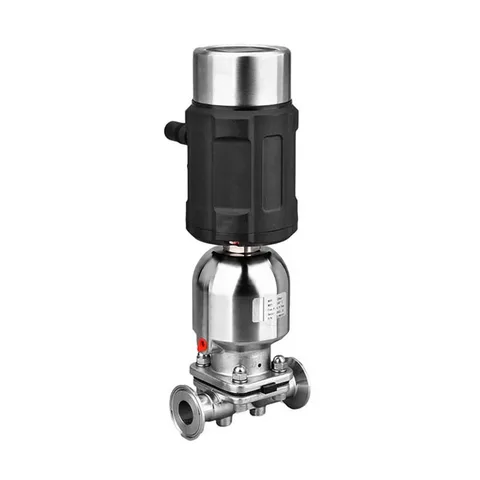

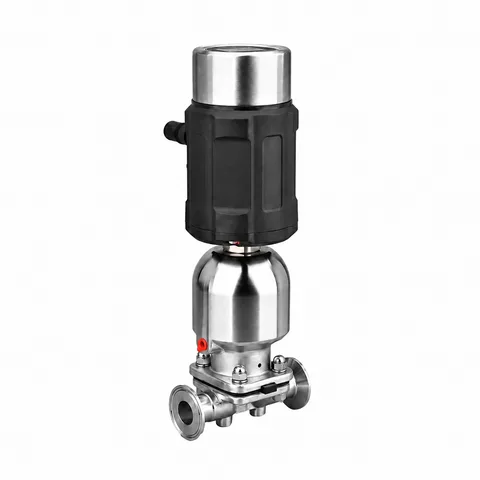

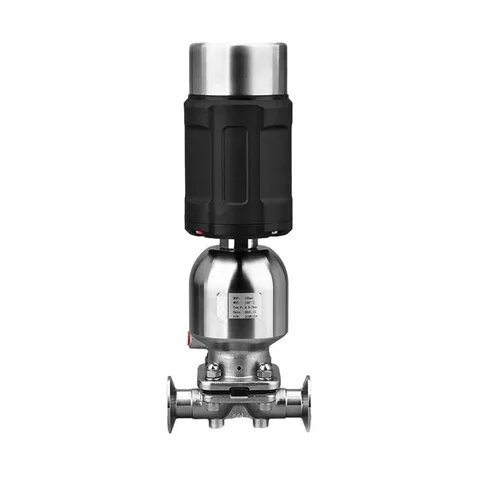

The clamp-end diaphragm valve with positioner mounts its positioner above the pneumatic actuator and uses clamp connections at both ends.
Material | SS316L |
|---|---|
Connection | Clamped |
Actuation | Pneumatic |
Product overview
Product structure
A Tri-Clamp joint connects mating ferrules with a separate clamp and gasket. A positioner is fitted to the operating assembly.
Tri-Clamp Diaphragm Valve with Positioner. A diaphragm valve uses a flexible diaphragm to separate the operating mechanism from the flow passage. Select the body arrangement and diaphragm for the intended line.
Selection checks
- Body and port arrangement
- Diaphragm material and medium compatibility
- End connections and actuation
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- AISI316L
- Material Options
- SS316L
Product series
- Media / applications
- Beer, Dairy, Beverage, Pharmacy (Product series)
- Seal material
- EPDM+PTFE (Product series)
- Interface standard options
- DIN, ISO, 3A, IDF (Product series)
- Series Pipeline Size Range
- DN10-DN50, 3/4"-2" (Series stainless steel pipeline size range)
- Pneumatic Drive Form Options
- Normally closed, normally opened, dual-port double acting (Series pneumatic actuator drive options)
