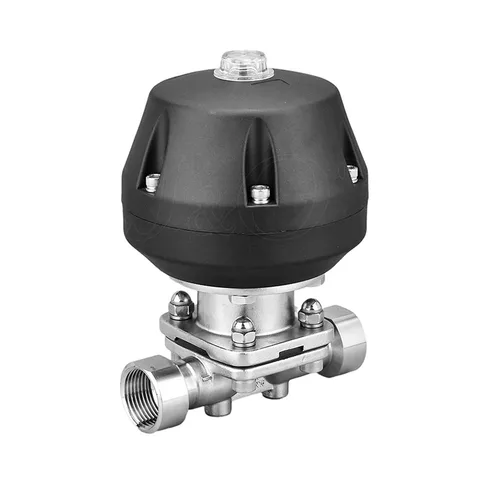

Pneumatic Female-Thread Diaphragm Valve, Plastic Actuator
The plastic-actuator pneumatic female-threaded diaphragm valve has a top actuator and female threads at both ends for mating pipe fittings.
Material | SS316L |
|---|---|
Connection | Female |
Actuation | Pneumatic |
Product overview
Product structure

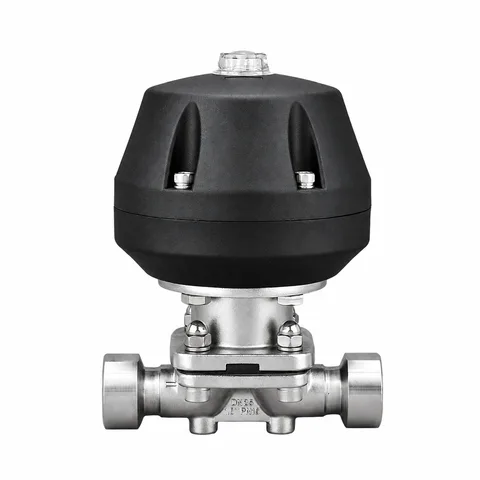

The actuator housing is identified as plastic. The identified threaded ports use internal threads. A pneumatic actuator forms the operating assembly.
Selection checks
- Body and port arrangement
- Diaphragm material and medium compatibility
- End connections and actuation
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- AISI316L
- Material Options
- SS316L
Product series
- Media / applications
- Beer, Dairy, Beverage, Pharmacy. (Product series)
- Seal material
- EPDM+PTFE (Product series)
- Interface standard options
- DIN, ISO, 3A, IDF (Product series)
