14MPHR Long Clamp Hose Adapter

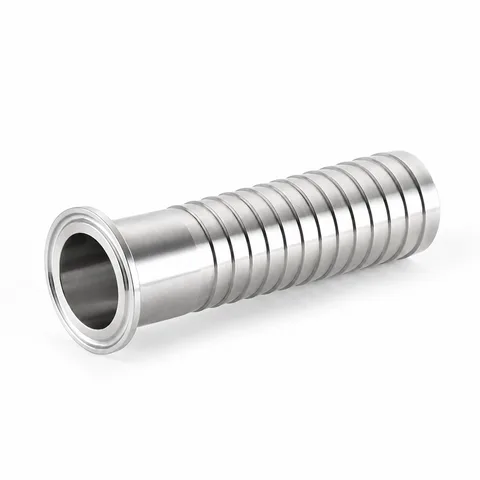

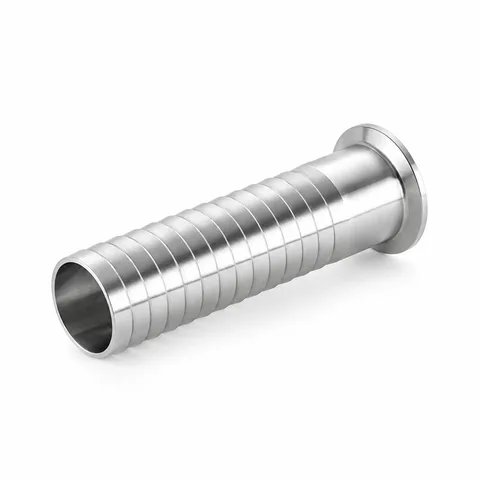

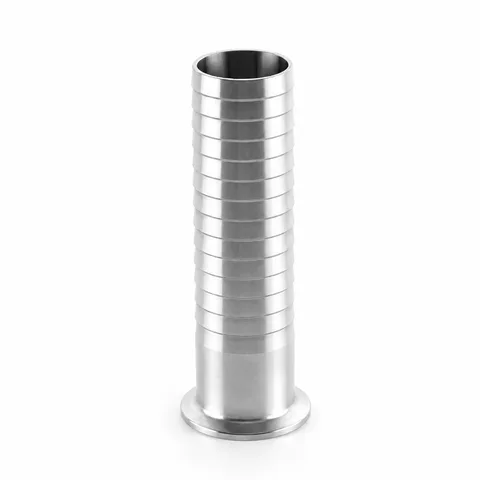

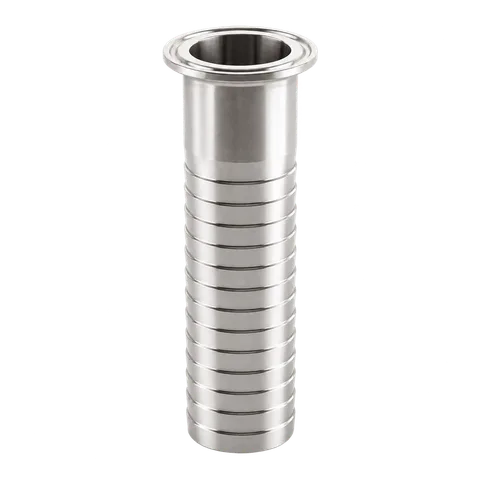

The 14MPHR adapter has a long ribbed hose tail and a clamp ferrule. Match the hose engagement and ferrule dimensions separately.
Material | SS304, SS316L |
|---|---|
Connection | Clamp |
Specification | ½"~4" |
Shape | Round |
Product overview
Construction and connections
The 14MPHR adapter has an extended ribbed hose tail and a clamp flange at the opposite end. The repeated circumferential ribs provide the hose engagement profile; the flange forms the detachable ferrule-and-gasket joint. Select hose-tail dimensions and clamp-interface dimensions separately.
Technical specifications
Product series
- End 1
- Tri-Clamp (Product series)
- End 2
- Hose barb (Product series)
14MPHR Rubber Hose Adapter
Applies to the 14MPHR Long Clamp Hose Adapter series dimensional reference (chart covers 1/2"–4", while overview highlights ½"~4"); verify specific end connection standard and mating line dimensions when ordering.
| Size | A | B | D | L |
|---|---|---|---|---|
| 1/2" | 25.2 | 9.0 | 12.7 | 50.8 |
| 3/4" | 25.2 | 15.0 | 19.0 | 50.8 |
| 1" | 50.5 | 21.4 | 25.4 | 114.3 |
| 1 1/4" | 50.5 | 27.8 | 31.8 | 114.3 |
| 1 1/2" | 50.5 | 34.0 | 38.1 | 114.3 |
| 2" | 64.0 | 47.0 | 50.8 | 114.3 |
| 2 1/2" | 77.5 | 59.5 | 63.5 | 114.3 |
| 3" | 91.0 | 72.2 | 76.2 | 114.3 |
| 4" | 119.0 | 97.6 | 101.6 | 114.3 |
Dimension symbols
- L
- overall face-to-face length
