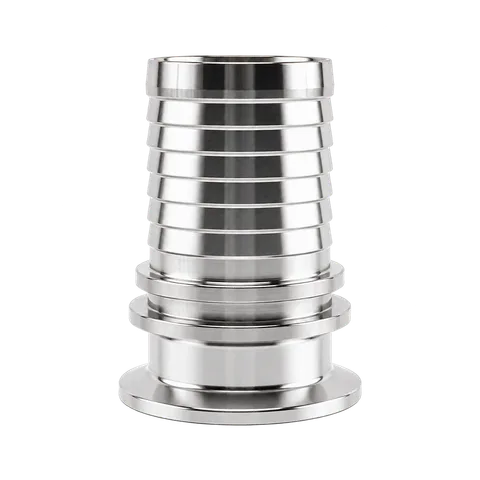

Shouldered Clamp Hose-Barb Adapter

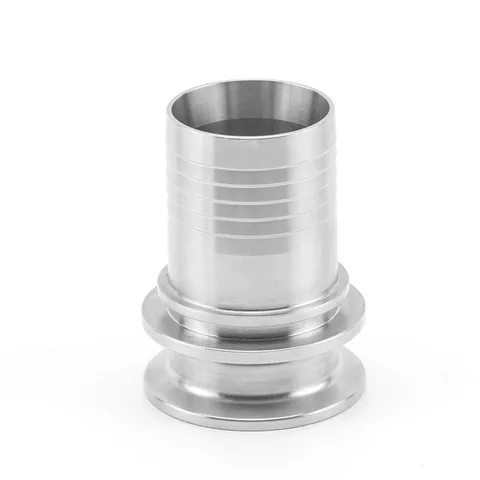

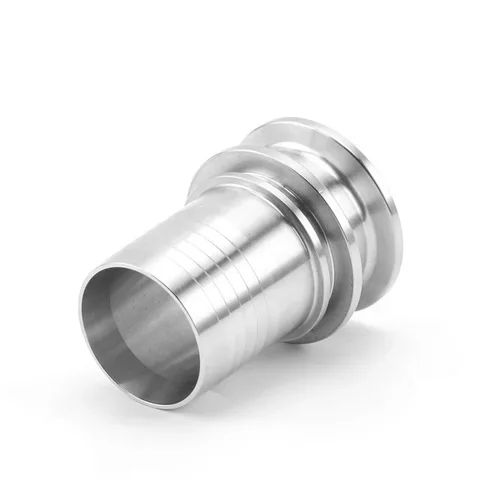

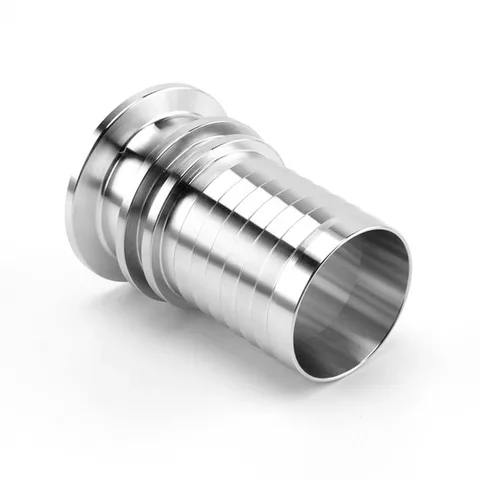

The hose tail has stepped ribs and a pronounced shoulder above the clamp face.
Material | SS304, SS316L |
|---|---|
Connection | Clamp |
Specification | 1"~4" |
Standard designation | 3A |
Shape | Round |
Product overview
Structure and Connection

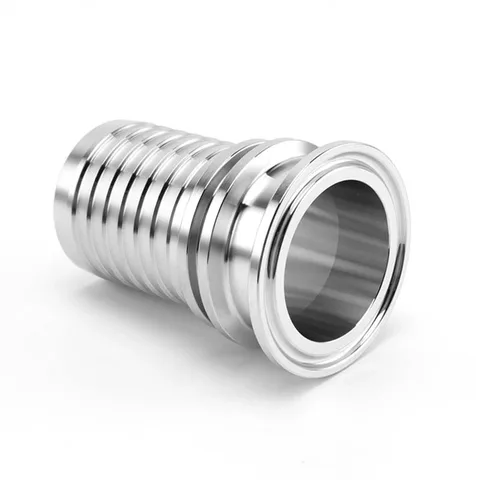

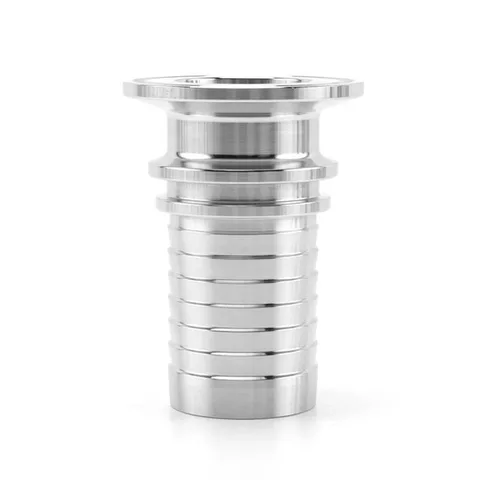

This shouldered sanitary hose adapter integrates a 3A Tri-Clamp flange on one end and a multi-ribbed stepped hose-barb tail on the other, separated by a machined annular retention shoulder behind the clamp neck.

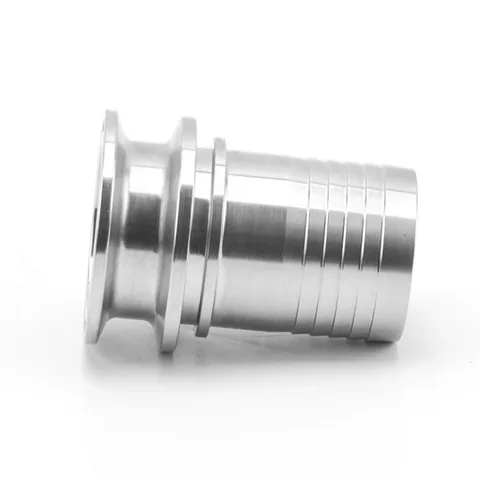

The raised shoulder acts as a positive axial stop for the flexible hose end and provides a collar seat for crimp ferrules or heavy-duty hose clamps in hygienic transfer assemblies.
Technical specifications
Product series
- End 1
- Tri-Clamp (Product series)
- End 2
- Hose barb (Product series)
- Standard options
- 3A,DIN,SMS,ISO (Interface dimension standard options; select the matching standard and dimensions.)
Series Dimensional Reference
Series chart covers 1/2"–12" under the shared crimp-ferrule hose adapter sheet; spans 12.7–395.0 (B) and 25.2–319.3 (A). Summary highlights 1"–4" for this shouldered adapter—confirm shoulder geometry when selecting sizes outside 1"–4".
| Size | ΦA (Clamp OD) | ΦB (Barb OD) |
|---|---|---|
| 1/2" | 25.2 | 12.7 |
| 3/4" | 25.2 | 19.0 |
| 3/4" | 34.0 | 19.0 |
| 3/4" | 50.5 | 19.0 |
| 1" | 50.5 | 25.4 |
| 1-1/4" | 50.5 | 31.75 |
| 1.5" | 50.5 | 38.1 |
| 2" | 64.0 | 50.8 |
| 2-1/2" | 77.5 | 63.5 |
| 3" | 91.0 | 76.2 |
| 3-1/2" | 106.0 | 89.0 |
| 4" | 119.0 | 101.6 |
| 5" | 155.0 | 127.0 |
| 6" | 166.8 | 152.0 |
| 8" | 217.7 | 203.0 |
| 10" | 268.5 | 254.0 |
| 12" | 319.3 | 395.0 |

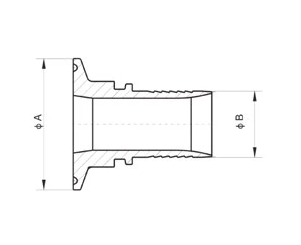

Dimension symbols
- ΦA
- Tri-Clamp flange outside diameter
- 12" row retains printed B
- 395.0.
