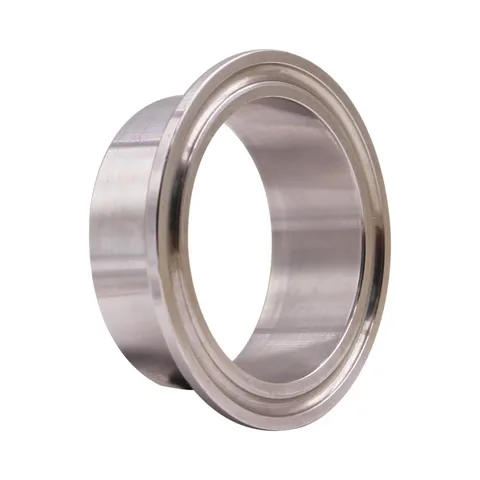

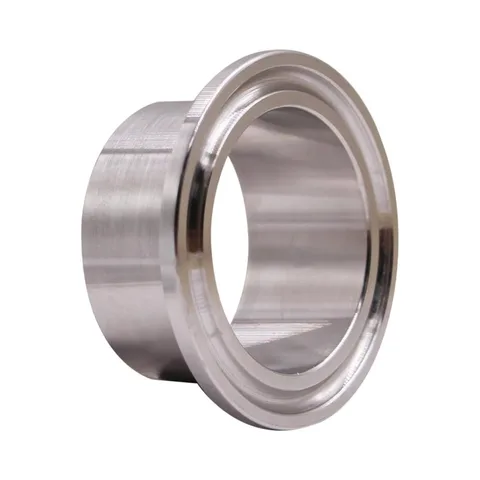

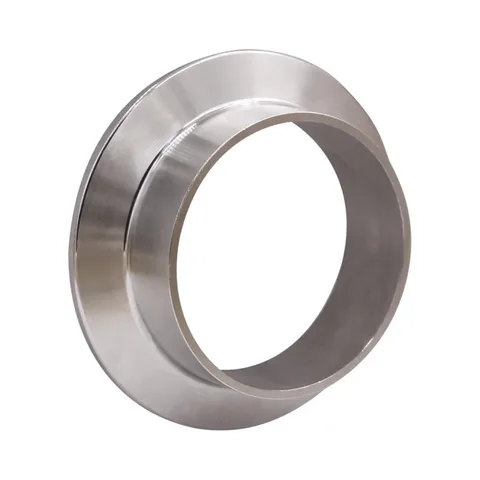

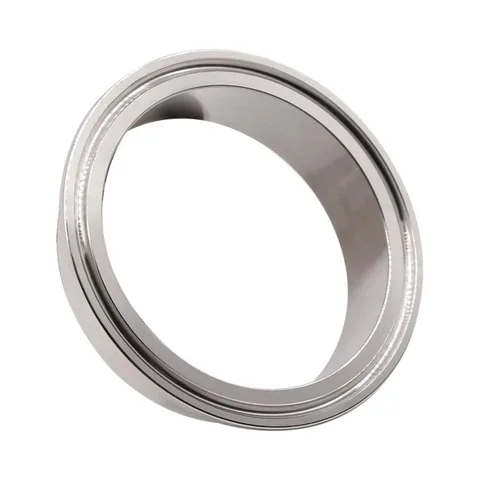

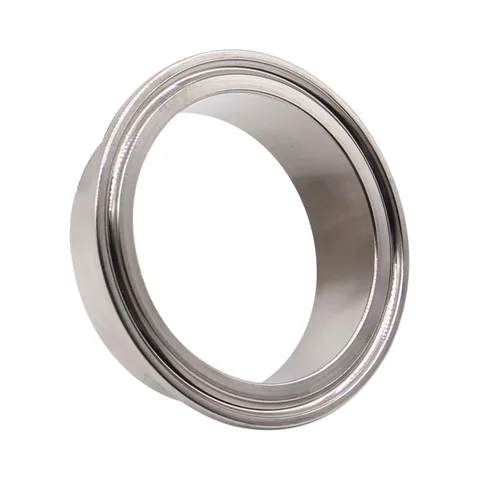

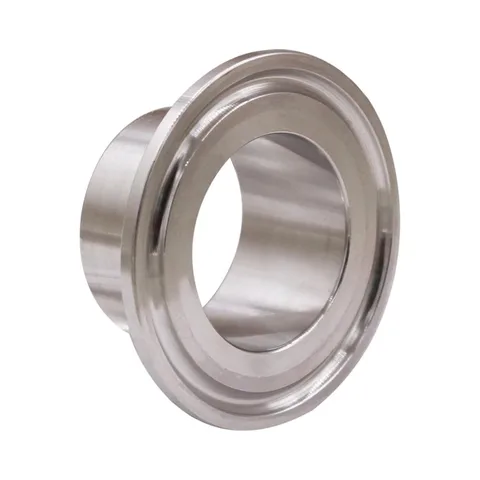

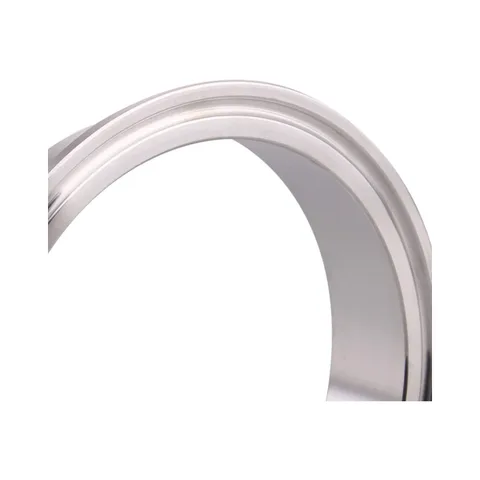

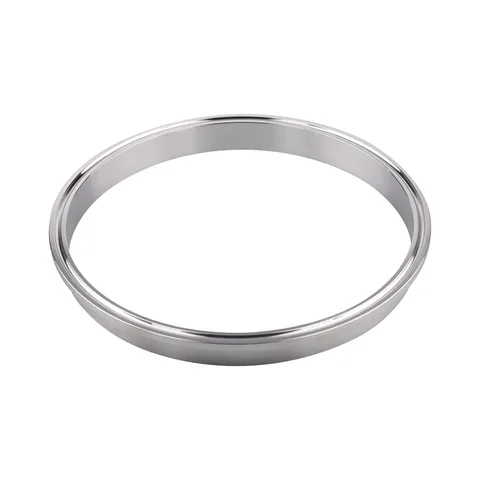

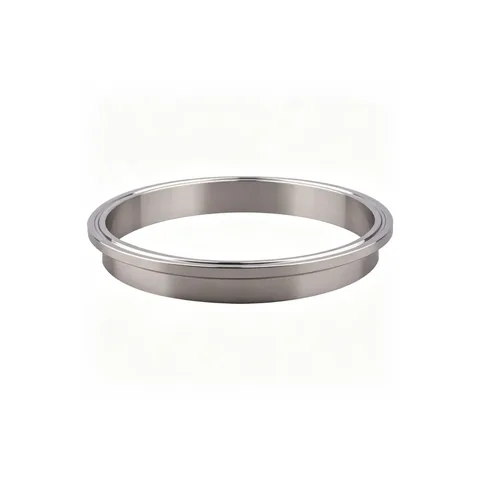

Weld Ferrule
A ferrule with a tube-side weld section and a clamp-profile end for a removable pipe connection.
The connection profile is separate from the tube-side joining section.
- Pipe OD and ferrule OD are selected together.
Select an option to include it in your enquiry.
Product overview
Product structure
Ferrule fitting for providing a seal when compressed between two mating components.
Application
Attaches to a fitting to help provide a leak-resistant seal on a tube or hose.
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Dimensional reference
Pipe OD | Ferrule OD (Flanged OD) | Ferrule OD |
|---|---|---|
25mm / 1" | 50.5mm Fits 1.5" Tri-clamp | — |
32mm / 1-1/4" | 51mm Fits 1.5" Tri-clamp | — |
38mm /1-1/2" | 51mm Fits 1.5" Tri-clamp | — |
51mm / 2" | 64mm Fits 2" Tri-clamp | — |
57mm / 2-1/4." | 76mm Fits 3" Tri-clamp | — |
64mm / 2-1/2." | 76mm / Fits 3" Tri-clamp | — |
76.5mm / 3" | 89mm / Fits 3" Tri-clamp | — |
102MM | — | 118MM Fits 4" Tri-clamp |
152MM | — | 168MM Fits 6" Tri-clamp |
204MM | — | 217MM Fits 8" Tri-clamp |
Need a different size, connection or document?
Discuss your requirements
