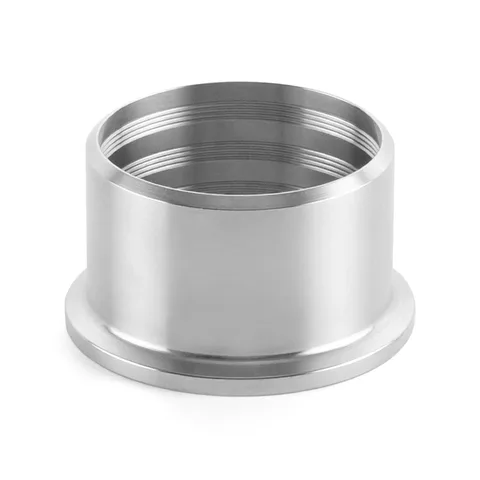

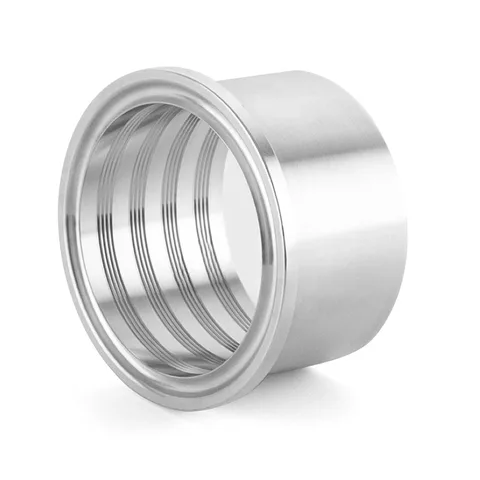

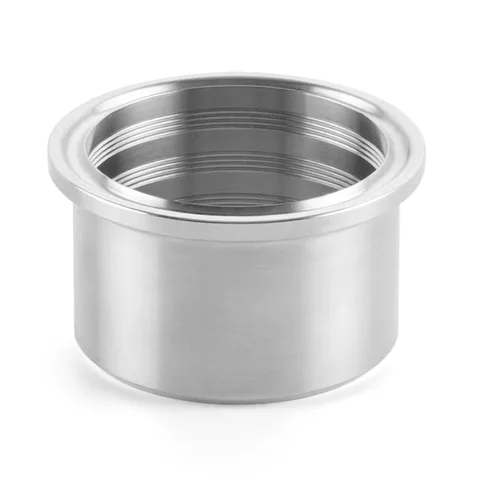

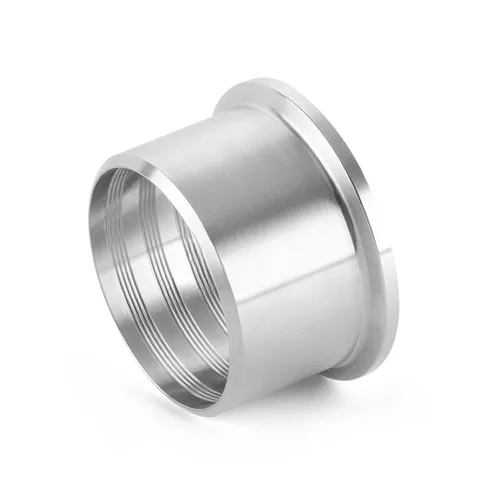

Expanding Tri-Clamp Ferrule
The expanding clamp ferrule has a flange end and a pipe-side sleeve end for assembly with mating tubing.
Model | CEF-22-A |
|---|---|
Material | SS304, SS316L |
Connection | Clamp |
Specification | 1"~4" |
Shape | Round |
Product overview
Product structure

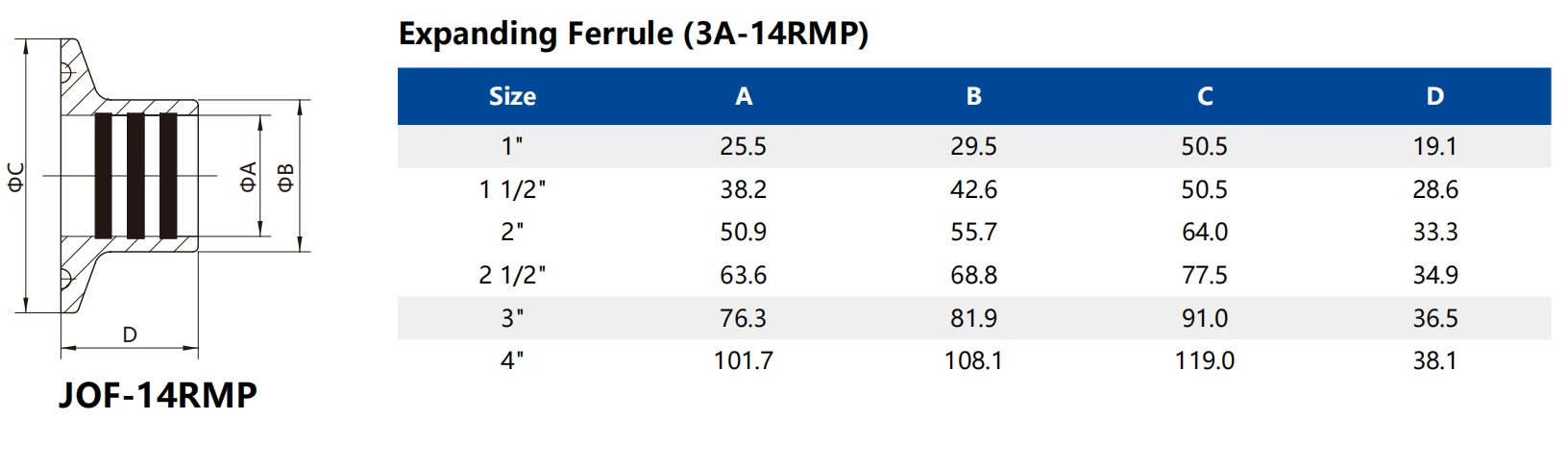

A 14RMP expanding ferrule with a grooved bore. Confirm the bore geometry, tube dimensions and mating ferrule profile; the visible grooves should not be assumed to define a thread.
Selection checks
- Tube outside diameter and wall thickness
- Ferrule flange diameter and profile
- Weld length and mating clamp/gasket
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- SS304, SS316L
Connections & dimensions
- Connection
- Clamp
Product series
- Media / applications
- Water (Product series)
Need a different size, connection or document?
Discuss your requirements
