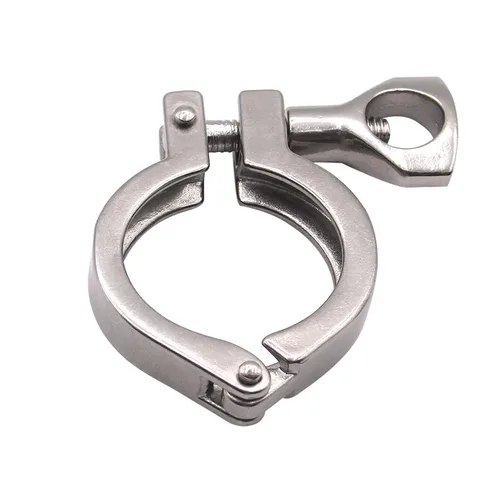

Single-Pin Tri-Clamp

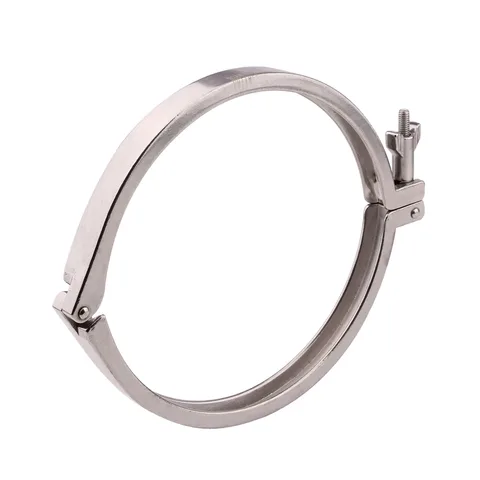

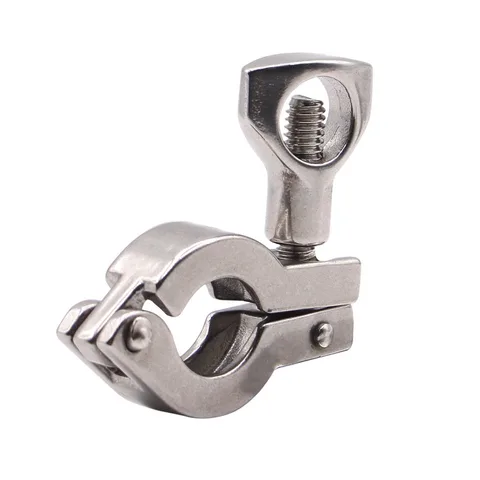

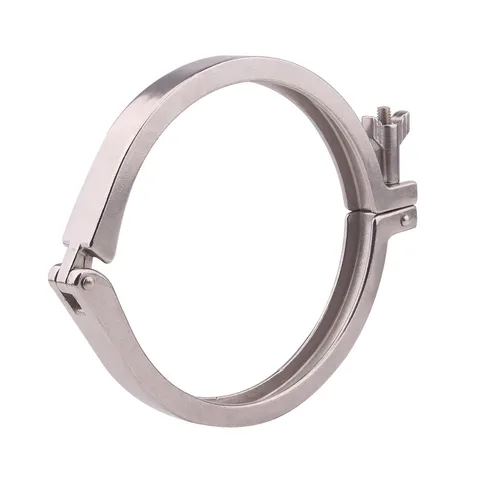

A single-pin hinged clamp with a wing nut for closing around and retaining mating ferrules.
Connection | Tri-Clamp |
|---|
Select an option to include it in your enquiry.
Product overview
Product structure
A pin joint links the clamp halves. The clamp is separate from the ferrules and gasket.
Selection checks
- Mating flange outside diameter and profile
- Clamp construction and available installation clearance
- Separate gasket or centring components required by the joint
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Connections & dimensions
- Connection
- Tri-Clamp
Dimension data and symbol key
Dimensional reference
Tube OD | Flange Size |
|---|---|
1 Inch to 1-1/2 Inch | 50.5MM, Fits 1.5 Inch Tri-clamp |
1/2 Inch to 3/4 Inch | 25.4MM, Fits 1 Inch Tri-clamp |
