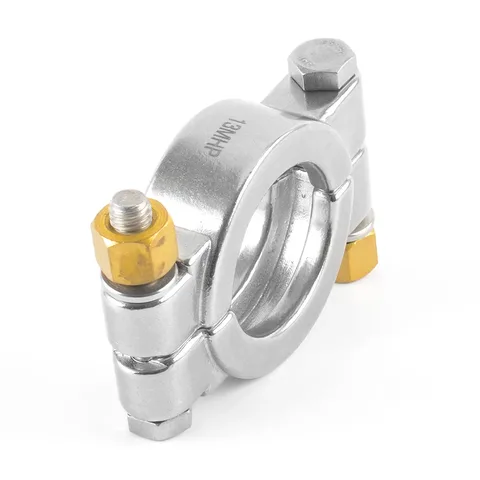

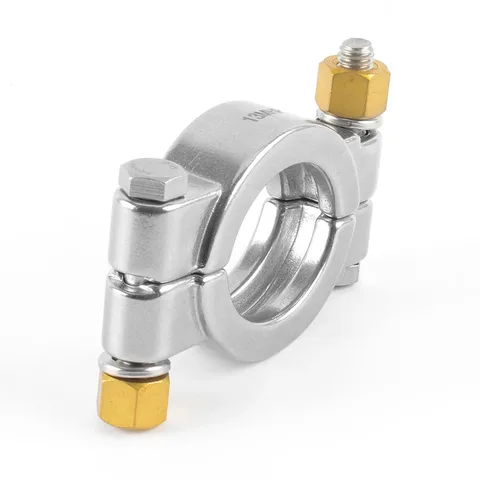

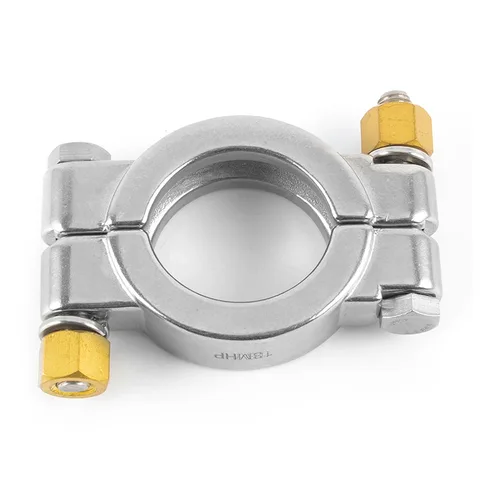

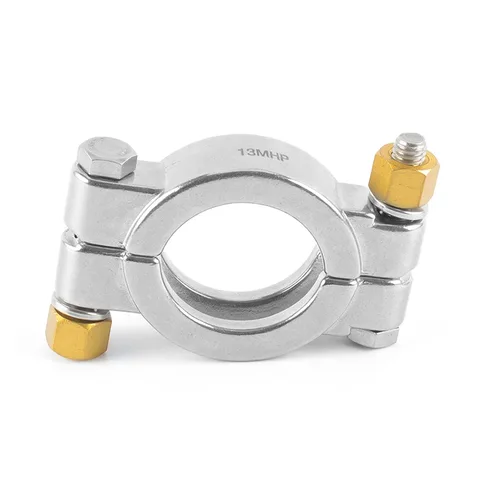

Two-Bolt Tri-Clamp
A two-bolt clamp uses bolt closures on both sides, with curved body sections surrounding the mating ferrule profiles.
Material | SS304, SS316L |
|---|---|
Connection | Clamp |
Specification | 1/2"-12" |
Shape | Round |
Product overview
Product structure
Two-Bolt Tri-Clamp with tri-clamp connection. Images retain the exact source series. Confirm size, supplied alloy, surface finish and gasket against the ordered model. Source family options do not establish pressure rating or certification.
Selection checks
- Mating flange outside diameter and profile
- Clamp construction and available installation clearance
- Separate gasket or centring components required by the joint
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Connections & dimensions
- Connection
- Clamp
- Connection
- Tri Clamp
