Double-Pin Tri-Clamp — DC Series

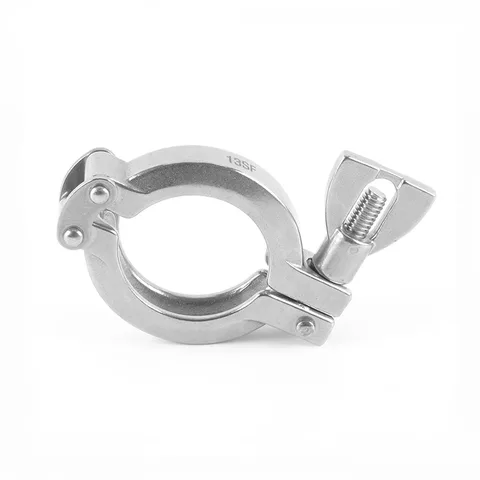

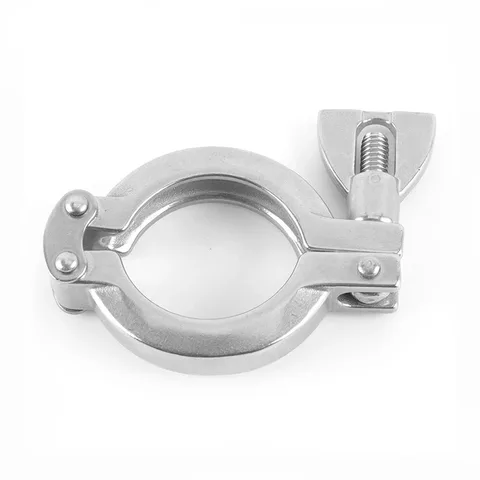

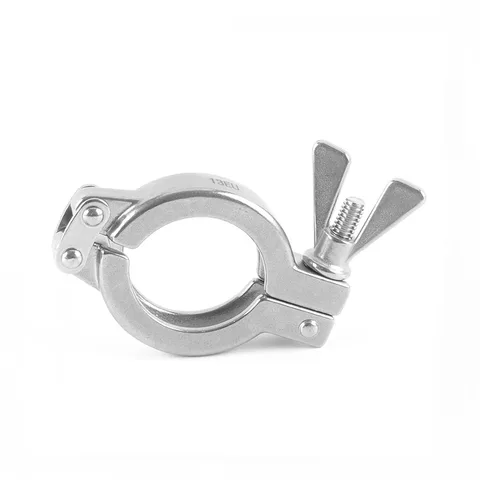

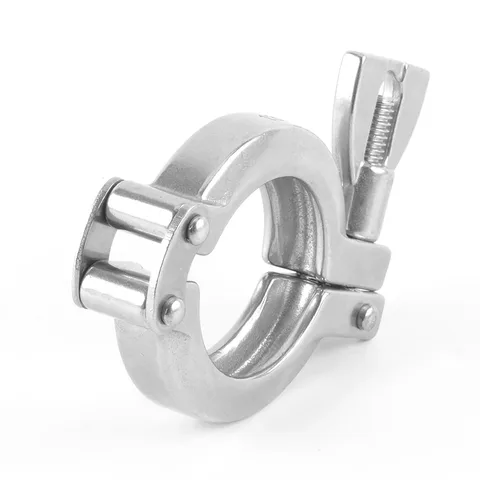

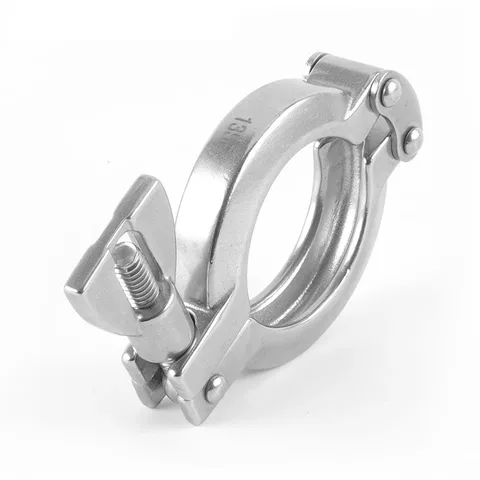

This double-pin clamp has a two-pin hinge and a threaded closure at the opposite end.
Material | SS304, SS316L |
|---|---|
Connection | Clamp |
Specification | 1/2"-12" or DN10-DN300 |
Shape | Round |
Product overview
Product structure
Double-Pin Tri-Clamp — DC Series with tri-clamp connection. Images retain the exact source series. Confirm size, supplied alloy, surface finish and gasket against the ordered model. Source family options do not establish pressure rating or certification.
Selection checks
- Mating flange outside diameter and profile
- Clamp construction and available installation clearance
- Separate gasket or centring components required by the joint
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- 304SS; 316(L)SS
Connections & dimensions
- Connection
- Tri Clamp
