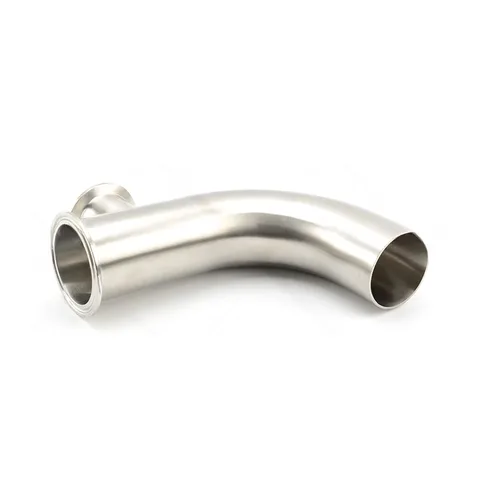

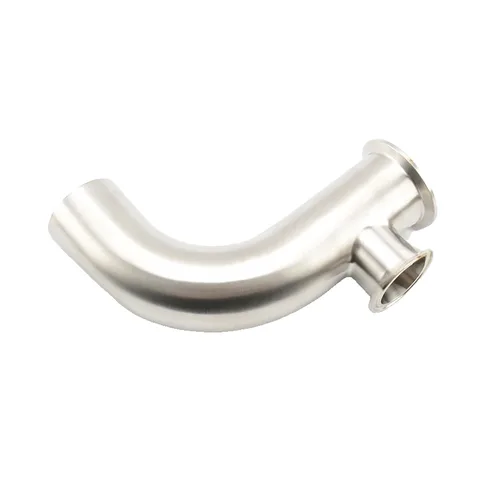

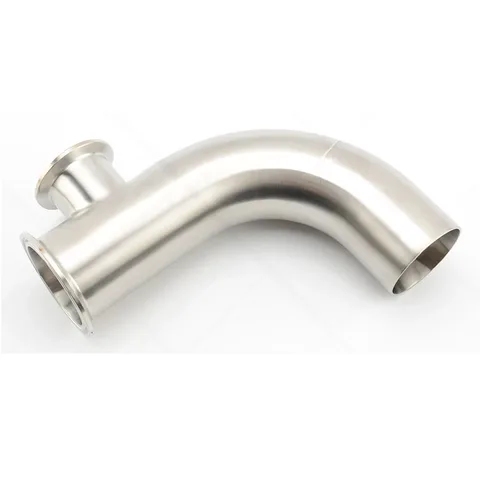

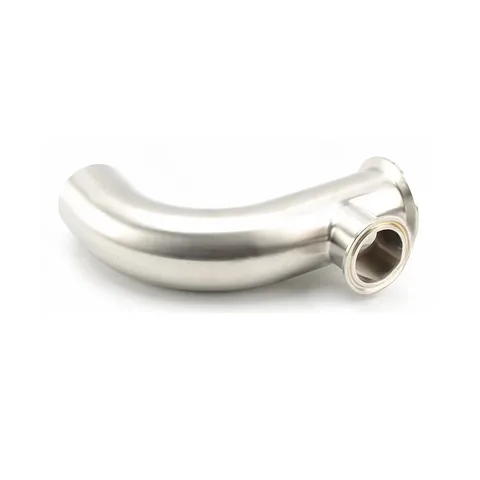

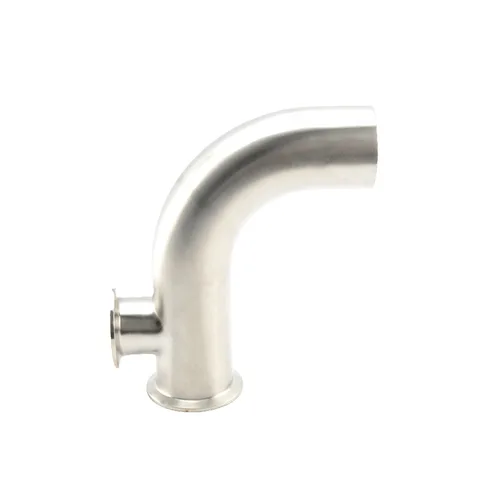

Three-Port Tri-Clamp Elbow
The three-way clamp elbow combines a curved main passage with an additional branch port.
Material | SS304, SS316L |
|---|---|
Connection | Weld / Clamp |
Specification | 1/2''-10'' |
Shape | Round |
Standard or Nonstandard | Nonstandard |
Product overview
Product structure
A Tri-Clamp joint connects mating ferrules with a separate clamp and gasket.
Three-Port Tri-Clamp Elbow. A pipe elbow changes the direction of a line. Match the bend geometry and both end connections to the adjoining tube.
Selection checks
- Tube outside diameter and wall thickness
- Bend angle, radius and installation envelope
- End preparation and the mating connection
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- SS304, SS316L
Product series
- Media / applications
- Water, Oil (Product series)
- Surface finish
- Mirror Polish, Matt Polish (Product series)
Need a different size, connection or document?
Discuss your requirements
