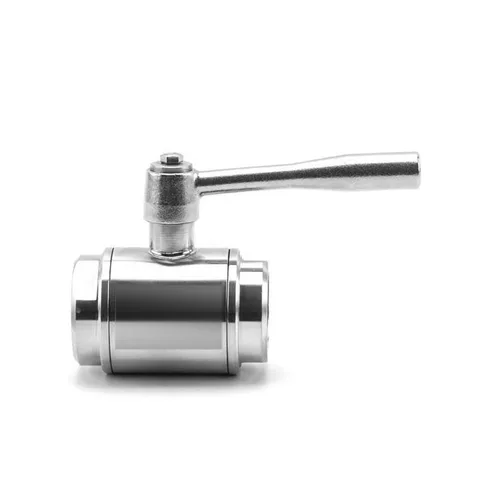

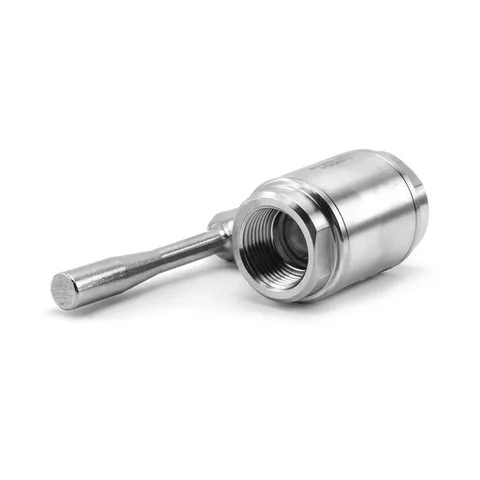

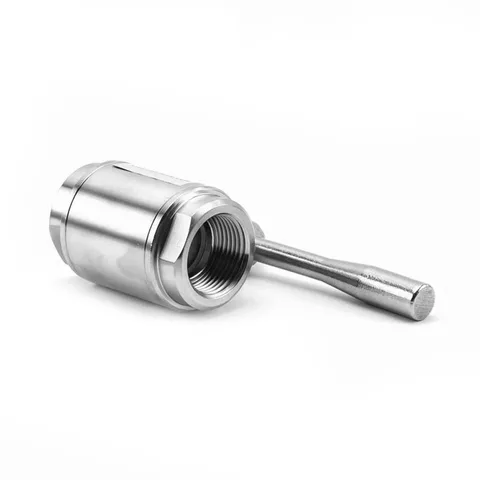

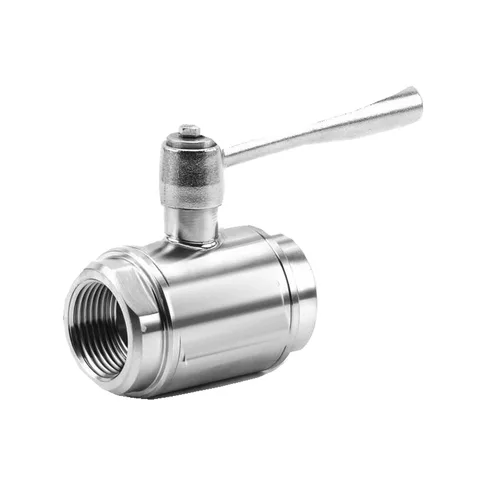

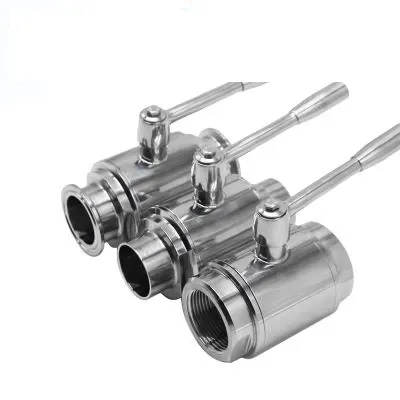

Sanitary Stainless Steel Female-Threaded Ball Valve
The female-thread ball valve combines a long operating rod with female-thread pipe ports for mating fittings.
Material | SS304/SS316L |
|---|---|
Connection | Female |
Specification | 3/4"-4" |
Product overview
Product structure
A manually operated valve with female-threaded ends and a lever handle. Confirm the thread standard, connection sizes and seal requirements for the line.
Selection checks
- Port arrangement and flow path
- End connections and bore dimensions
- Seat, seal and actuator requirements
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- AISI304, AISI316L
Connections & dimensions
- Connection
- Thread/Thread

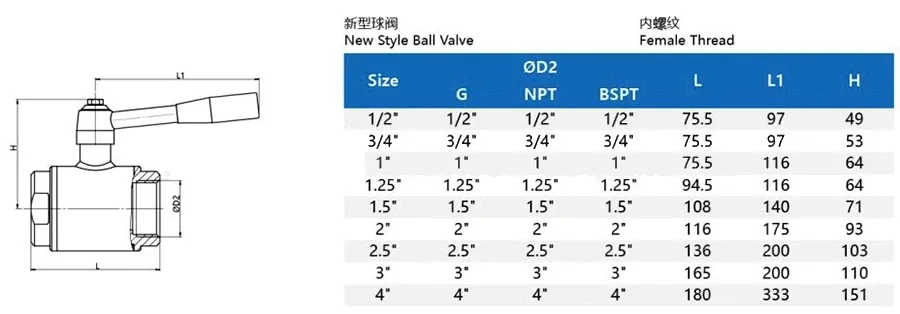

Dimension data and symbol key
Dimension series table
For the structure series and interfaces listed in this table; dimension symbols follow the corresponding diagram.
The table does not label a common unit. Values are retained as printed; compare them with the accompanying drawing.
Size | G | NPT | BSPT | L | L1 | H |
|---|---|---|---|---|---|---|
1/2" | 1/2" | 1/2" | 1/2" | 75.5 | 97 | 49 |
3/4" | 3/4" | 3/4" | 3/4" | 75.5 | 97 | 53 |
1" | 1" | 1" | 1" | 75.5 | 116 | 64 |
1.25" | 1.25" | 1.25" | 1.25" | 94.5 | 116 | 64 |
1.5" | 1.5" | 1.5" | 1.5" | 108 | 140 | 71 |
2" | 2" | 2" | 2" | 116 | 175 | 93 |
2.5" | 2.5" | 2.5" | 2.5" | 136 | 200 | 103 |
3" | 3" | 3" | 3" | 165 | 200 | 110 |
4" | 4" | 4" | 4" | 180 | 200 | 151 |
