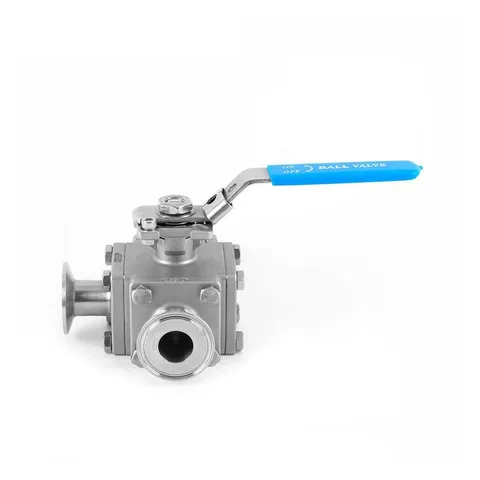

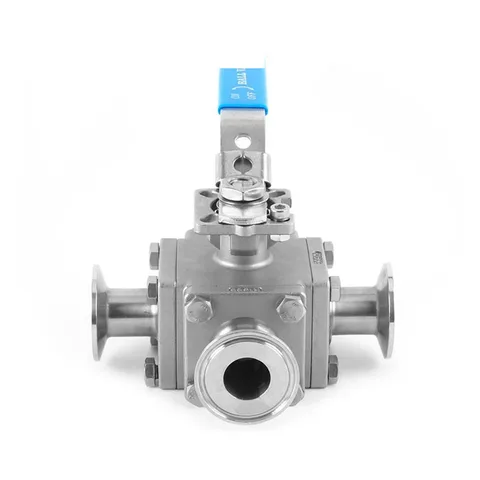

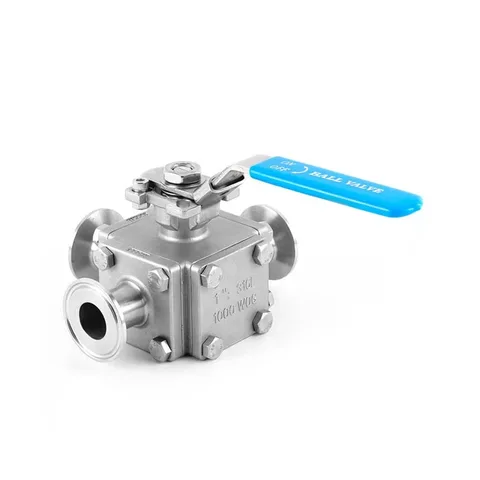

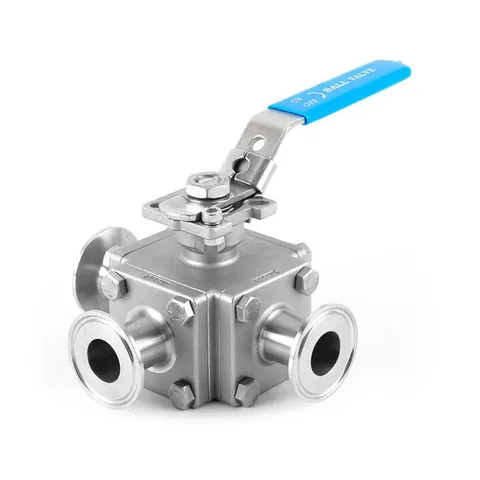

Encapsulated Three-Way Tri-Clamp Ball Valve
The encapsulated three-way clamp ball valve combines three pipe ports with a top lever and a ball passage for the required flow path.
Material | SS304/SS316L |
|---|---|
Connection | Clamped |
Type | Three Ways |
Specification | 1/2"-4" |
Shape | Square |
Product overview

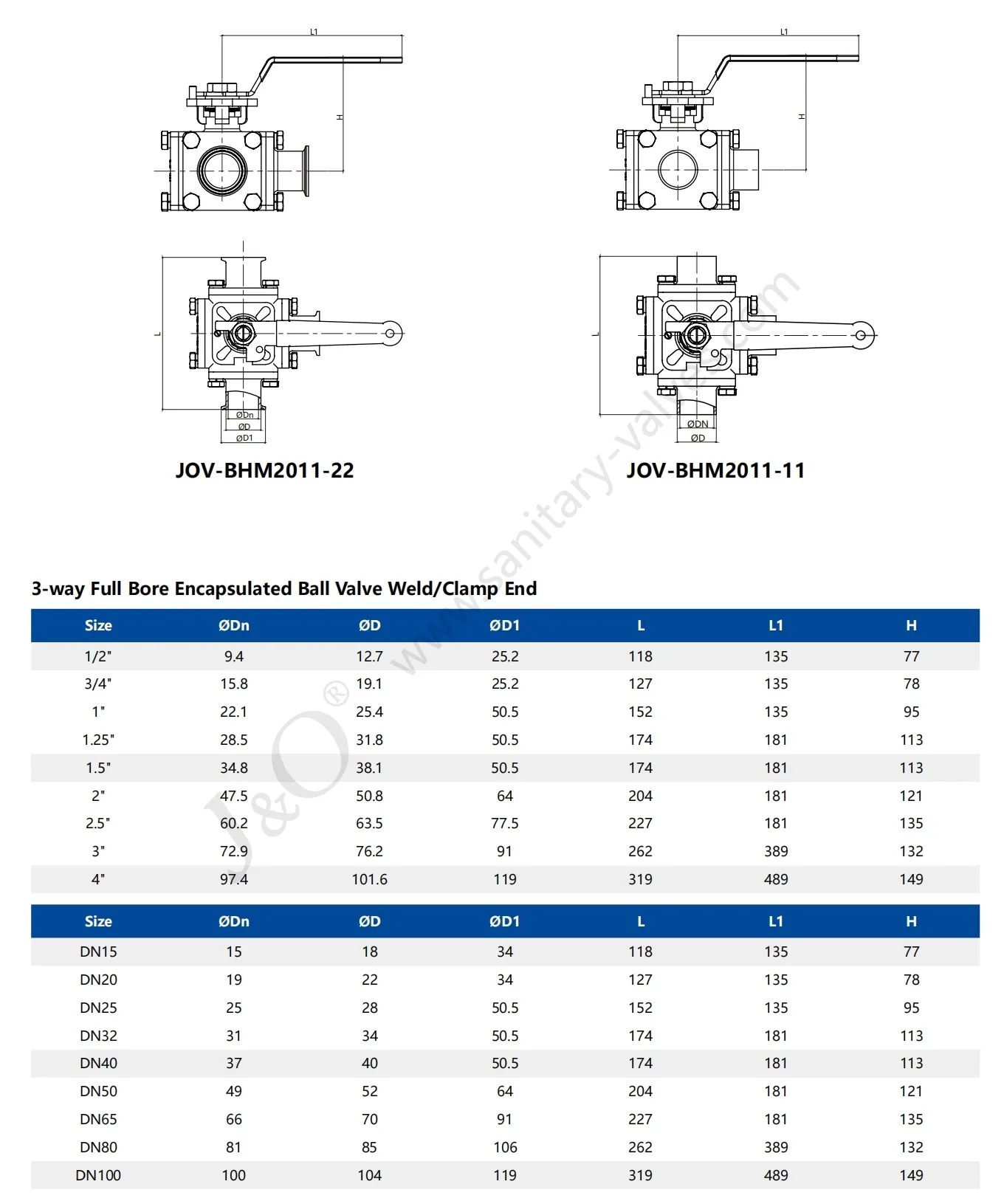

Product structure
A Tri-Clamp joint connects mating ferrules with a separate clamp and gasket. Three ports form the valve flow arrangement.
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Body Material Options
- SS304/SS316L
- Material Options
- 304; 316L
Connections & dimensions
- Connection
- Tri-Clamp
Need a different size, connection or document?
Discuss your requirements
