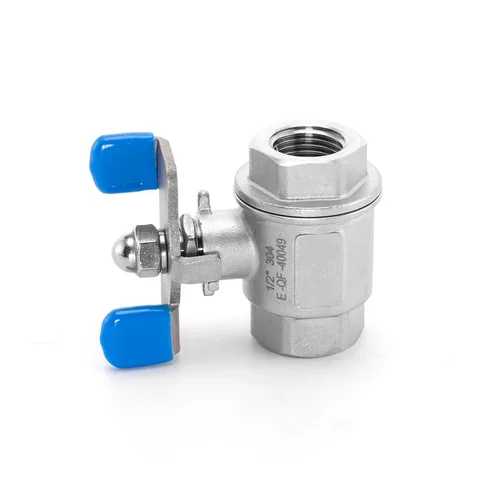

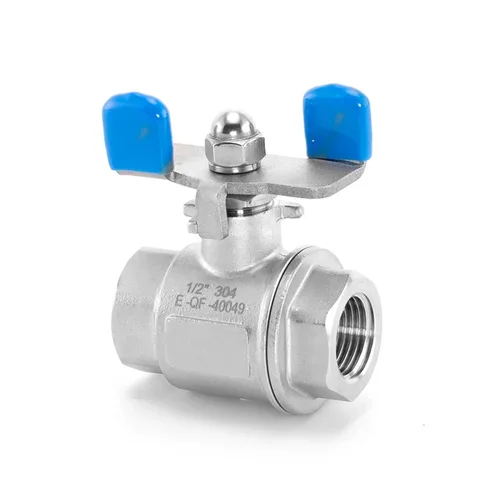

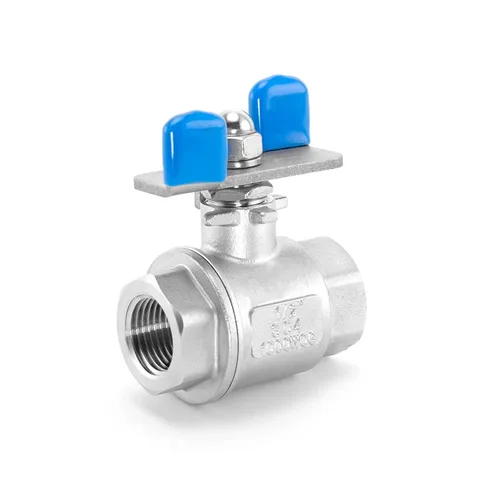

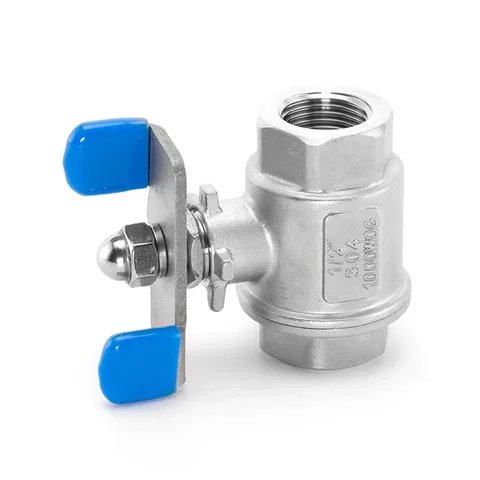

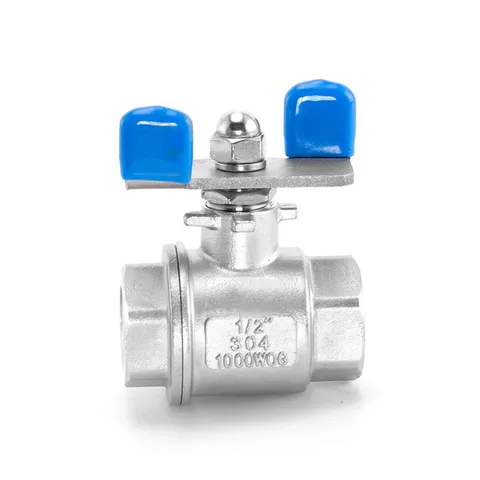

Two-Piece Female-Thread Ball Valve
The two-piece female-thread ball valve combines a body and end cap with a butterfly handle controlling the ball.
Material | SS304, SS316L |
|---|---|
Connection | NPT, BSPT |
Specification | 1"-6" |
Product overview
Product structure
The identified threaded ports use internal threads. The body is arranged in two pieces.
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Dimension data and symbol key
Main component materials
No. | Part | Material column 1 | Material column 2 |
|---|---|---|---|
1 | Body | CF8 | CF8M |
2 | Cap | CF8 | CF8M |
3 | Ball | CF8 | CF8M |
4 | Ball Seat | PTFE | PTFE |
5 | Gasket | PTFE | PTFE |
6 | Stem | SS304 | SS316 |
7 | Thrust Washer | PTFE | PTFE |
8 | Stem Packing | PTFE | PTFE |
9 | Gland Nut | SS304 | SS304 |
10 | Handle | SS304 | SS304 |
11 | Spring Washer | SS304 | SS304 |
12 | Stem Nut | SS304 | SS304 |
13 | Plastic Cover | Plastic | Plastic |
