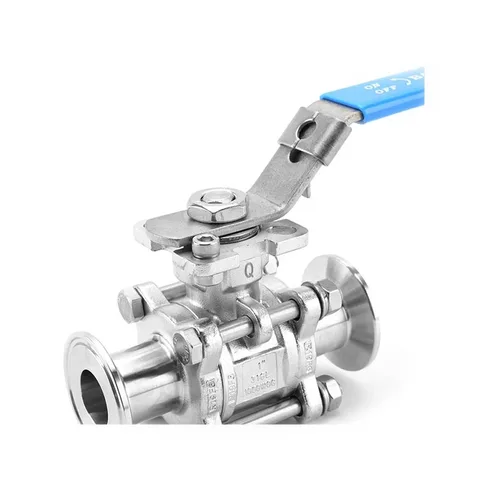

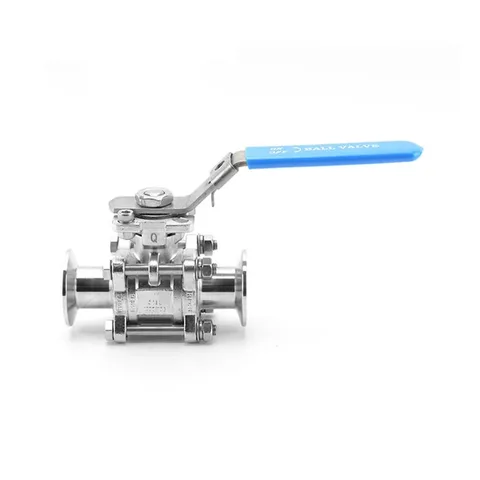

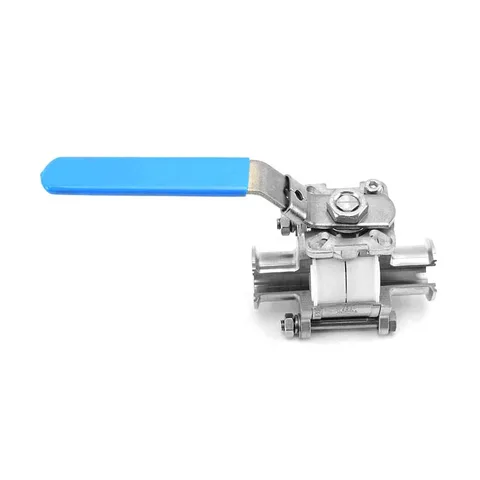

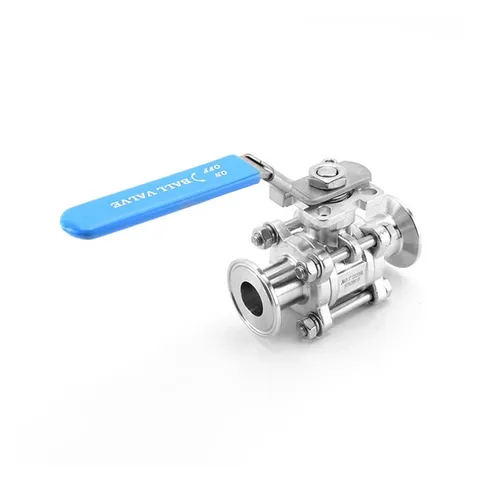

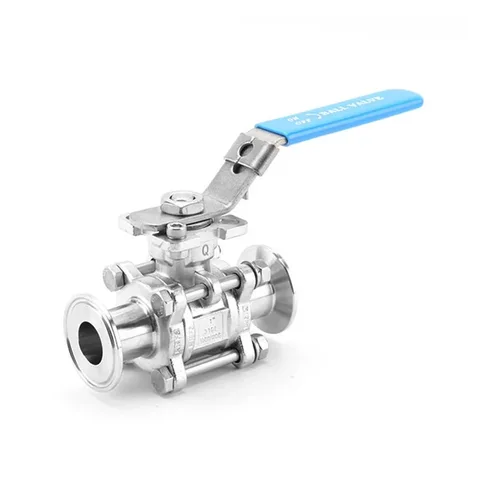

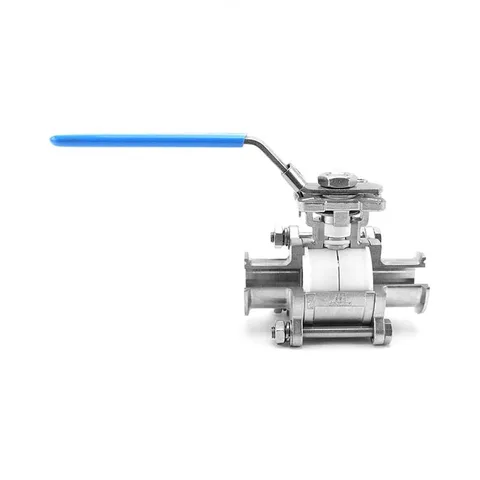

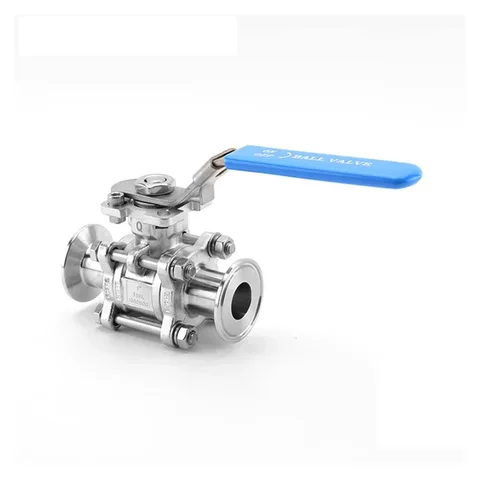

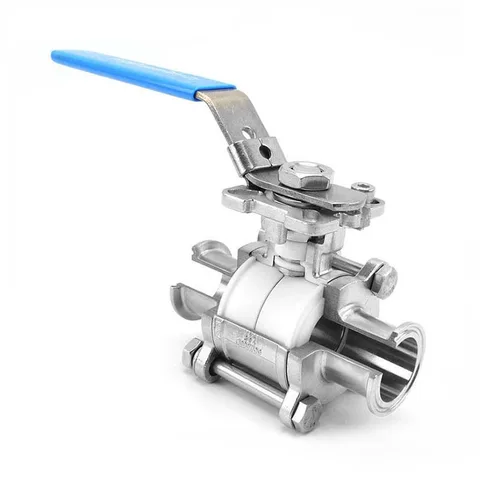

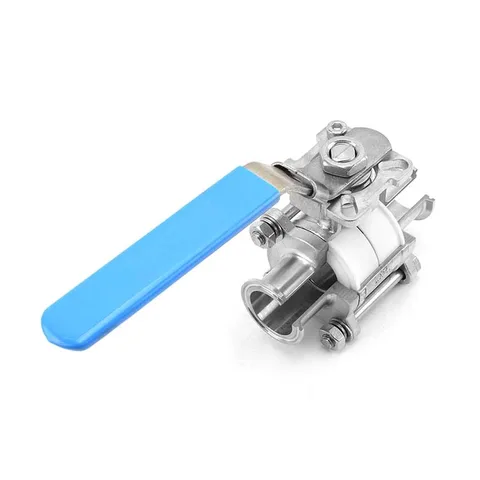

Three-Piece Tri-Clamp Ball Valve
The three-piece clamp ball valve joins a central body and end sections, with a lever turning the ball.
Material | SS304/SS316L |
|---|---|
Connection | Clamped |
Specification | 3/4"-4" |
Product overview
Product structure
A Tri-Clamp joint connects mating ferrules with a separate clamp and gasket. The body is arranged in three pieces.
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Body Material Options
- SS304/SS316L
- Material Options
- 304; 316L

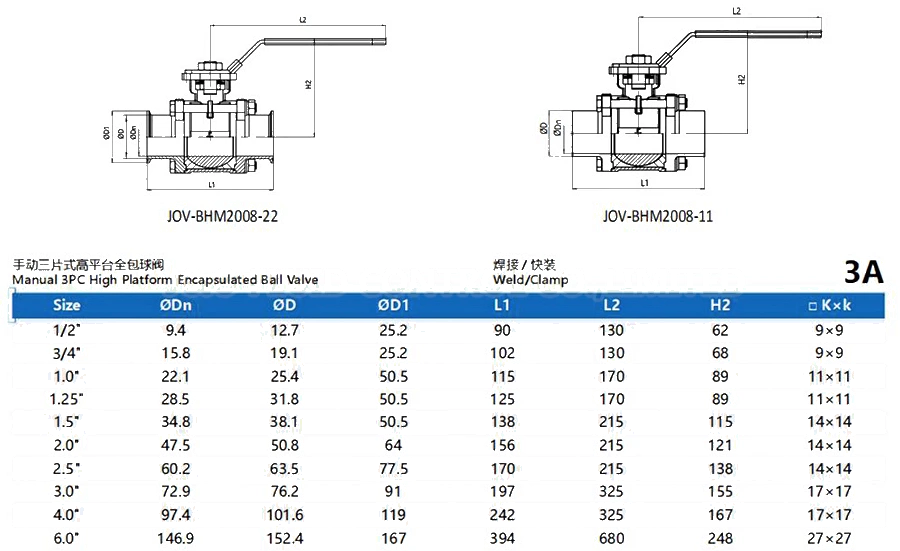

Connections & dimensions
- Connection
- Tri-Clamp
Need a different size, connection or document?
Discuss your requirements
