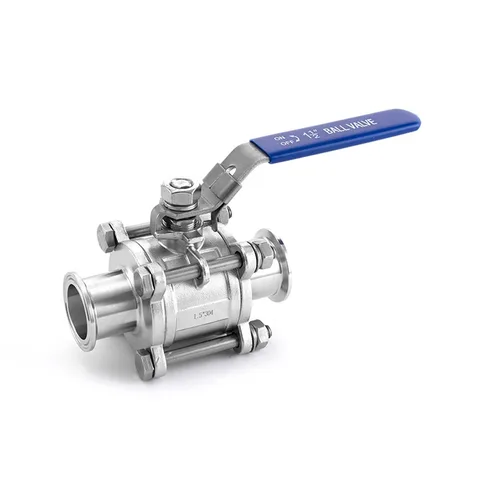

Three-Piece Sanitary Ball Valve
The manual three-piece ball valve combines a central body, end sections and through-fasteners, with a lever controlling the ball.
Material | SS304, SS316L |
|---|---|
Connection | Tri-Clamp |
Specification | 1"-4" |
Standard or Nonstandard | 3A, DIN |
Product overview
Product structure
The body is arranged in three pieces.
Pipe and drive installation
Fasteners assemble the central operating section and pipe-end components. Compare mating parts, body length and bore for the required connection type, keeping room for lever travel and body fastener access.
Construction and manufacture
The three-piece ball-valve series offers an optional cavity-filled seat around the ball cavity to reduce retention space and provide access for cleaning the port.
Series connections and accessories
Available with pneumatic or electric actuators, position feedback, and multiple manual handle styles, with elastomer seats selected for the process medium and temperature.
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Body Material Options
- SS304/SS316L
Need a different size, connection or document?
Discuss your requirements
