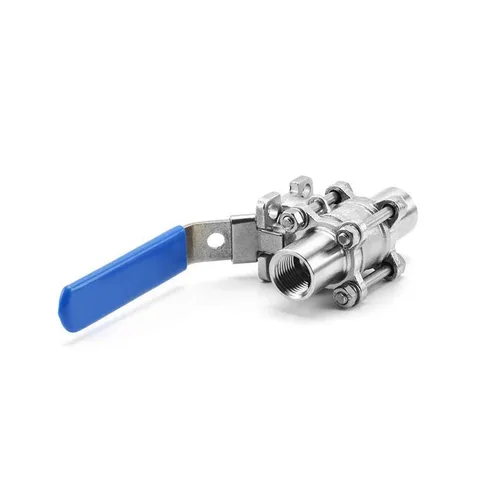

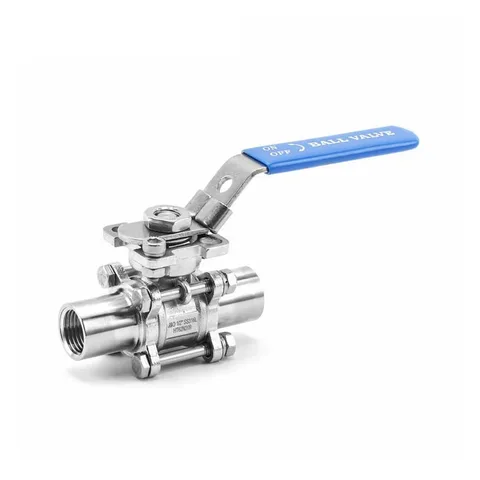

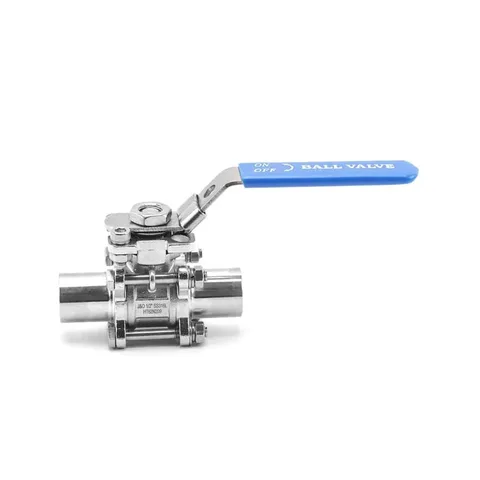

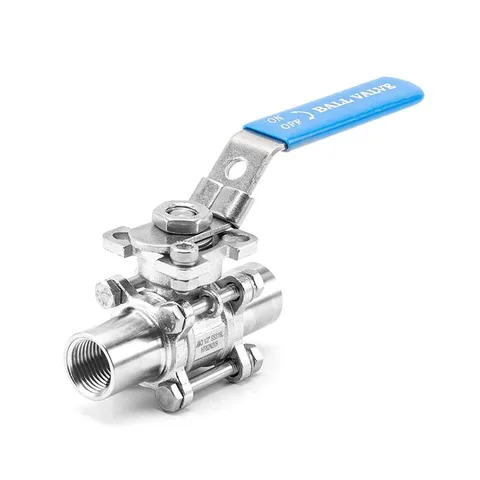

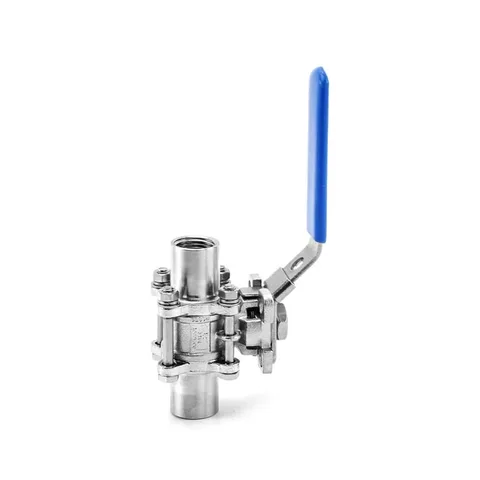

Three-Piece Threaded Ball Valve
The three-piece threaded ball valve uses fasteners to join a central body and end sections, with a lever controlling the ball.
Material | SS304/SS316L |
|---|---|
Connection | Female |
Specification | 3/4"-4" |
Product overview
Product structure
The body is arranged in three pieces.
Pipe and drive installation
Threaded ends connect mating fittings, with separate assembly points for the body and pipe joints. Compare the supplied thread form, mating fittings and body length, allowing access to the lever and fasteners.
Construction and manufacture
The three-piece body has an ISO direct mounting pad. An optional cavity-filled seat surrounds the ball cavity to reduce retention space and provide access for cleaning the port.
Series connections and accessories
Available with pneumatic or electric actuators, position feedback, and multiple manual handle styles, with elastomer seats selected for the process medium and temperature.
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Body Material Options
- SS304/SS316L
Connections & dimensions
- Connection
- Threaded
Need a different size, connection or document?
Discuss your requirements
