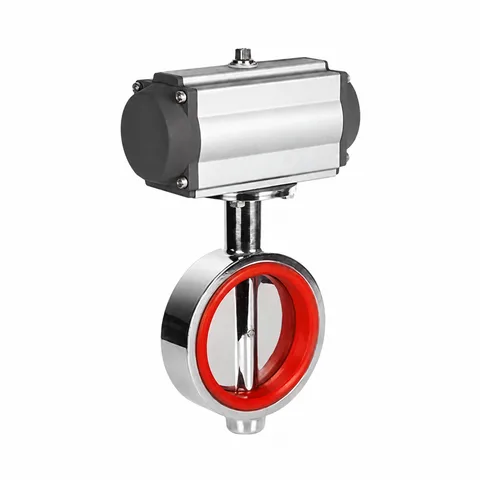

Pneumatic Wafer Butterfly Valve

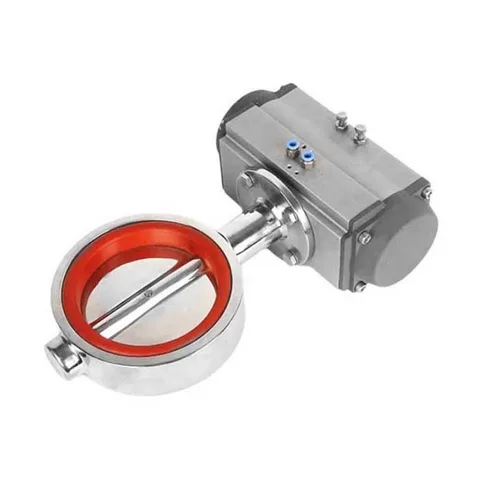

The pneumatic wafer butterfly valve combines a thin pipe body with a horizontal actuator and a disc inside the body passage.
Material | SS304/SS316L |
|---|---|
Actuation | Pneumatic |
Specification | DN25-DN300 |
Product overview
Product structure
A pneumatic actuator forms the operating assembly.
Pneumatic Wafer Butterfly Valve. A butterfly valve controls the line with a rotating disc. The mating connection, sealing arrangement and operating mechanism define the installation.
Selection checks
- Connection profile and nominal size
- Disc and seal requirements
- Manual or actuator interface and operating clearance
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- SS304, SS316L
- Material Options
- SS304/SS316L
Product series
- Media / applications
- Water, Oil (Product series)
- Seal material options
- Silicone, EPDM, Telfon, Nitrile etc. (Seal materials and configurations)
- Pressure range
- 0-10 bar (Product series)
- Interface standard options
- 3A, DIN, IDF, SMS etc. (Product series)
- Body and disc manufacture
- Made by Forged material, fully precision machined by CNC machine. (Series body and disc)
