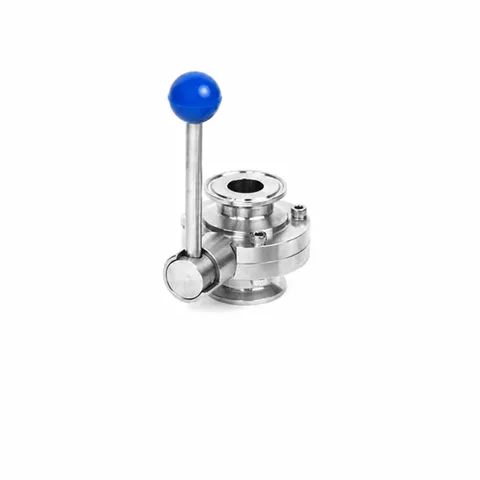

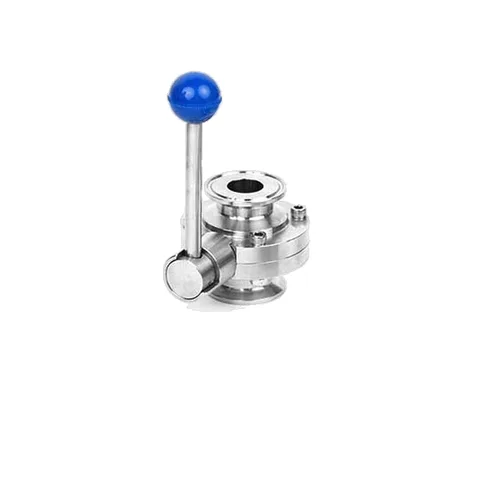

Sanitary Tri-Clamp Butterfly Valve with Vertical Pull Handle
The clamp-end butterfly valve with vertical pull handle has a top handle assembly that turns the disc through the shaft.
Material | SS304/SS316L |
|---|---|
Connection | Welding,Thread,Clamped |
Specification | DN25-DN250, 1"-10" |
Product overview
Product structure
A Tri-Clamp joint connects mating ferrules with a separate clamp and gasket.

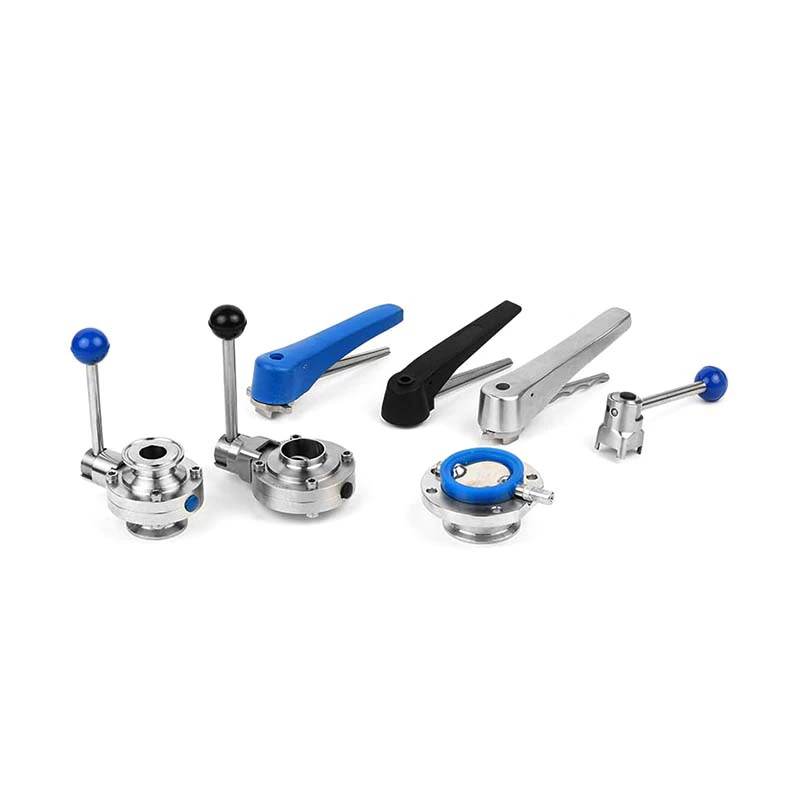

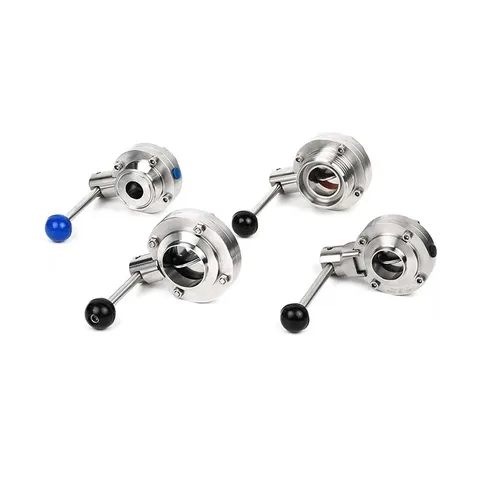

Sanitary butterfly valve with a vertical pull handle and tri-clamp ends. Handle configurations and exploded parts are supporting details, not evidence that different end connections are interchangeable. Confirm body and seal material options, dimensions and operating conditions for the supplied model.
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Body Material Options
- 1.4404/1.4301, SS304/SS316L
