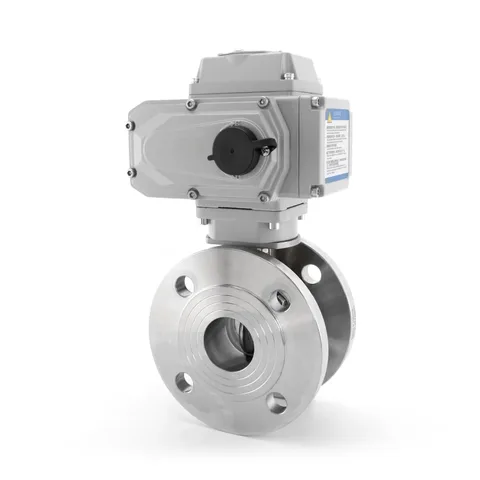

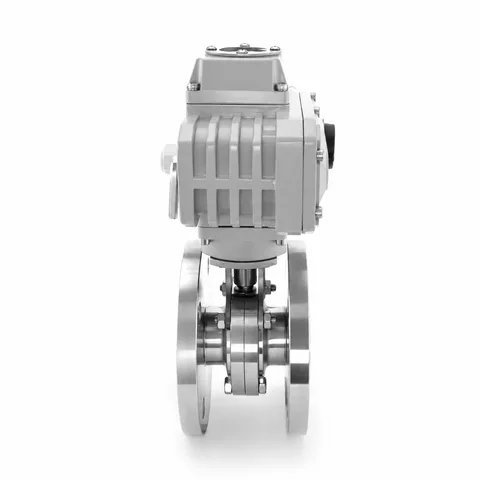

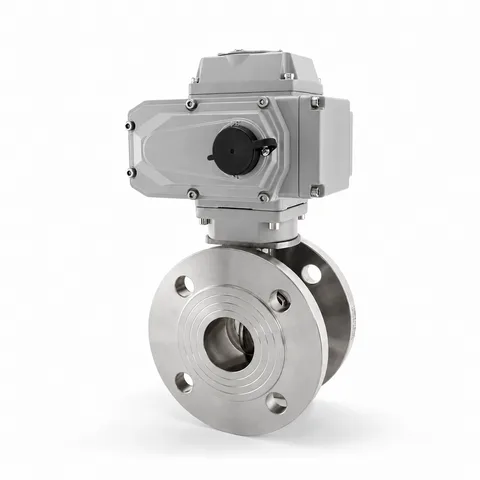

Electric Flanged Butterfly Valve
The electric flanged butterfly valve has a top electric actuator and flanges with bolt holes for pipe connections.
Model | JOV-BFHE-44 |
|---|---|
Material | SS304/SS316L |
Connection | Flange |
Actuation | Electric |
Specification | DN15-DN300 |
Product overview
Product structure
Flanged ends form the mating pipe connections. An electric actuator forms the operating assembly.
Electric Flanged Butterfly Valve. A butterfly valve controls the line with a rotating disc. The mating connection, sealing arrangement and operating mechanism define the installation.
Selection checks
- Connection profile and nominal size
- Disc and seal requirements
- Manual or actuator interface and operating clearance
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- SS304/SS316L
- Body Material Options
- 1.4404/1.4301, SS304/SS316L
Connections & dimensions
- Connection
- Flange
Product series
- Media / applications
- Water, Oil (Product series)
- Seal material
- EPDM (standard) FPM/SILICON/NBR (Seal materials and configurations)
- Pressure range
- 0-10 bar (Product series)
- Control accessory options
- Sensor, C-TOP, C-top controller(AS-I) (Series accessory options)
