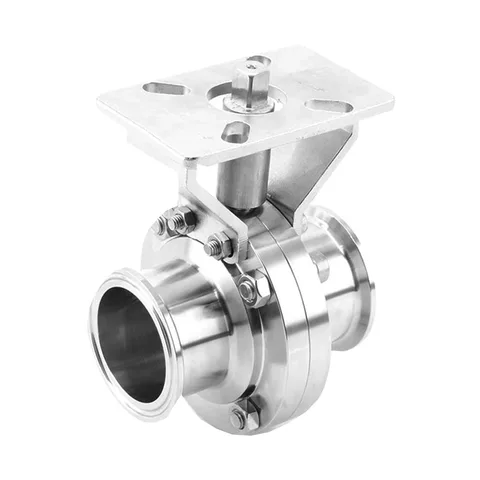

Sanitary Tri-Clamp Butterfly Valve with Mounting Bracket

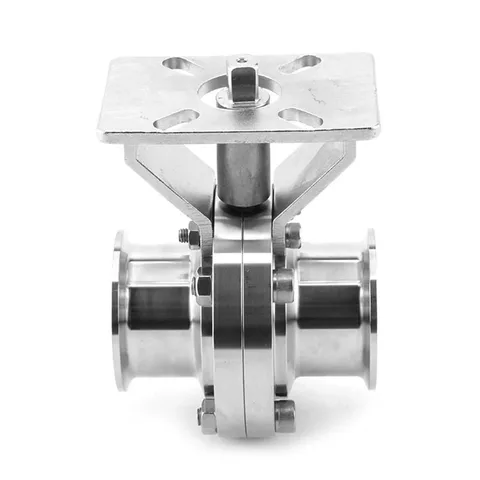

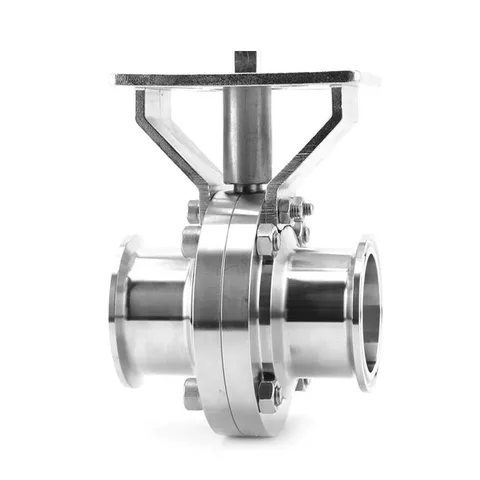

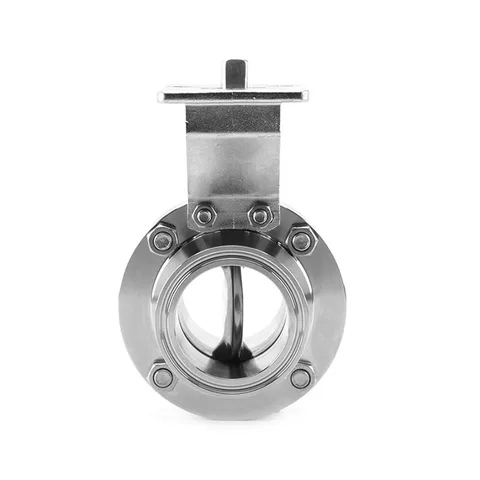

The clamp-end butterfly valve with mounting bracket has an actuator support above the body, with the shaft extending toward the mounting face.
Material | SS304/SS316L |
|---|---|
Connection | Clamped |
Specification | DN25-DN250, 1"-10" |
Product overview
Product structure
A Tri-Clamp butterfly valve with a mounting bracket. Specify the mating ferrules, bracket interface and installation dimensions for the required valve assembly.
Selection checks
- Connection profile and nominal size
- Disc and seal requirements
- Manual or actuator interface and operating clearance
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Body Material Options
- 1.4404/1.4301, SS304/SS316L
Need a different size, connection or document?
Discuss your requirements
