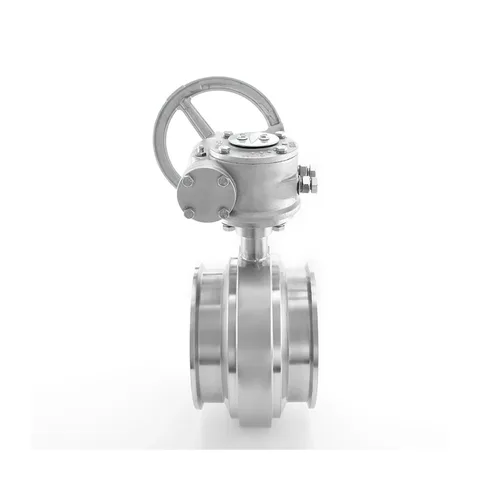

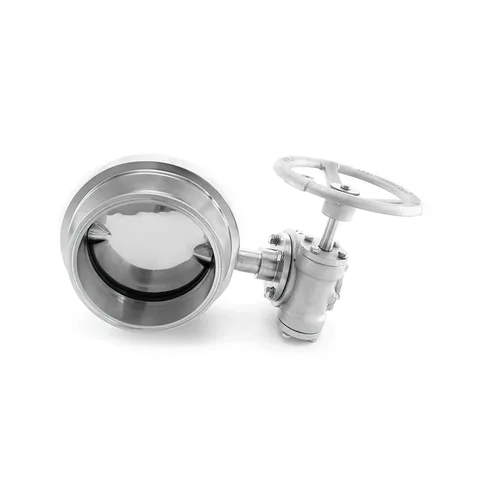

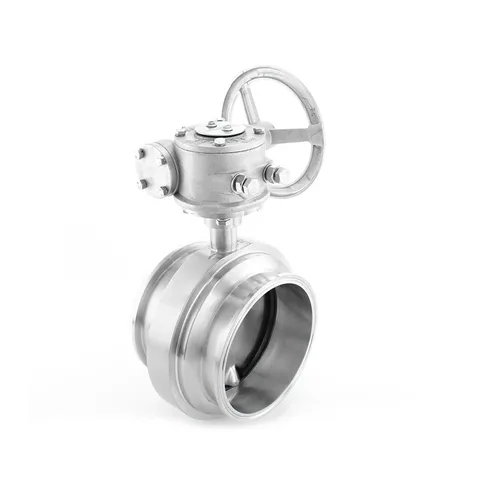

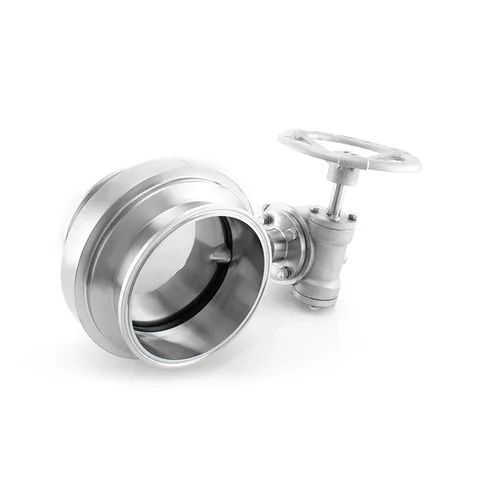

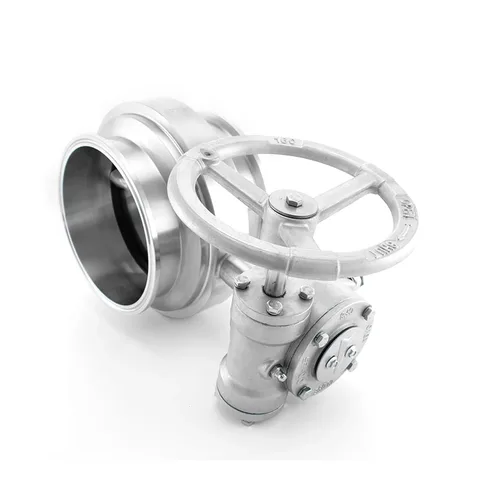

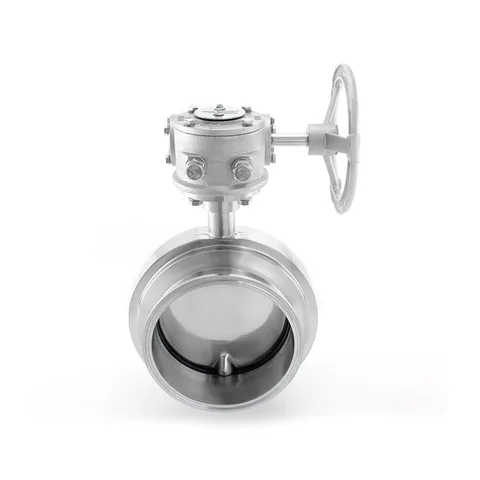

One-Piece Worm-Gear Tri-Clamp Butterfly Valve
The one-piece worm-gear clamp-end butterfly valve combines a handwheel and gear drive with clamp pipe interfaces at both ends.
Material | SS304, SS316L |
|---|---|
Connection | Tri-Clamp |
Specification | 1"-10" |
Standard or Nonstandard | DIN 3A SMS AS BS |
Product overview
Product structure
A Tri-Clamp joint connects mating ferrules with a separate clamp and gasket. The body is identified as a one-piece construction. A worm-gear operator drives the valve shaft.
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Connections & dimensions
- Connection
- Clamp
- Connection
- Tri-Clamp
