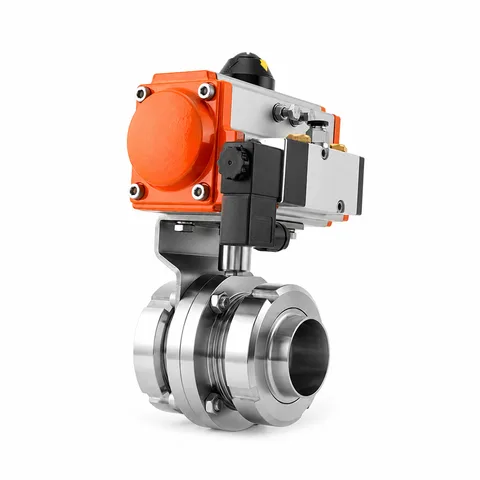

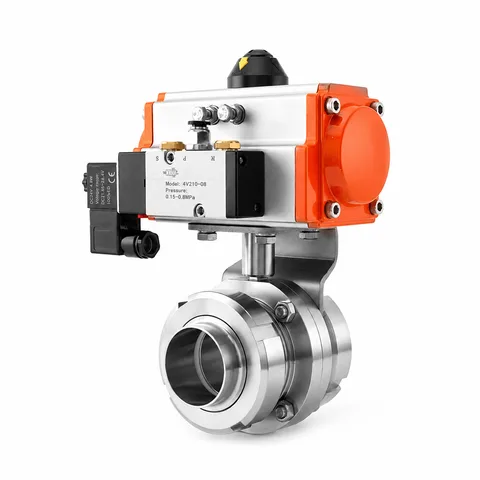

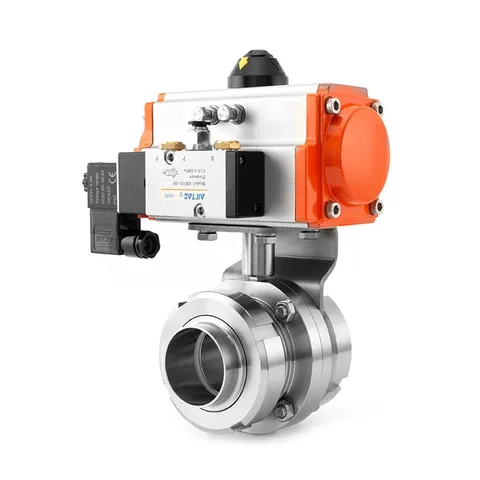

Pneumatic Union Butterfly Valve with Pilot Valve
The pneumatic union-end butterfly valve combines a pilot solenoid valve with its actuator and uses union pipe interfaces at both ends.
Model | BFVET |
|---|---|
Material | SS304/SS316L |
Connection | Union |
Actuation | Pneumatic |
Specification | 1"-6" |
Product overview
Product structure
A pneumatic actuator forms the operating assembly.
Selection checks
- Connection profile and nominal size
- Disc and seal requirements
- Manual or actuator interface and operating clearance
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- SS304/SS316L
Product series
- Media / applications
- Water, Oil (Product series)
- Seal material
- EPDM/SILICON/NBR (Product series)
- Pressure range
- 0-10 bar (Product series)
- Interface standard options
- DIN/SMS/3A/ISO/IDF (Product series)
