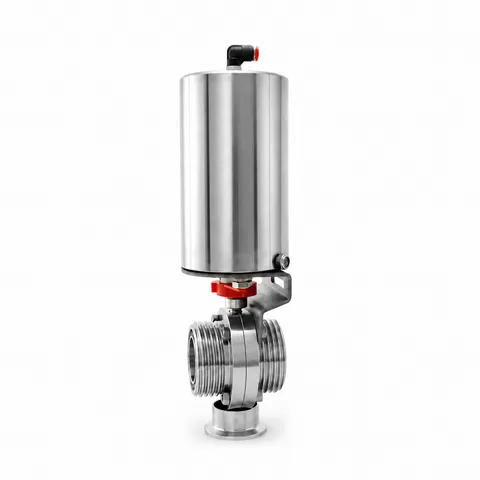

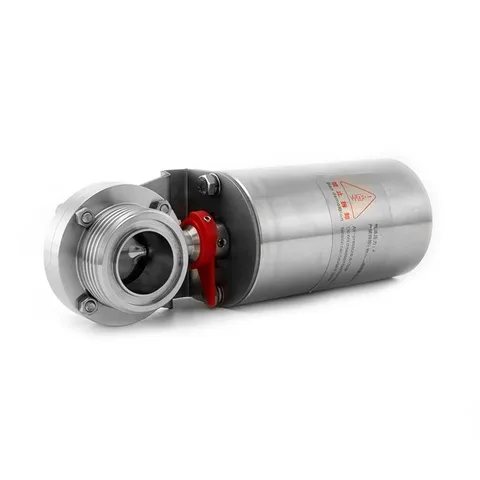

Pneumatic Threaded Butterfly Valve
The pneumatic threaded butterfly valve has a top actuator and threaded interfaces at both ends for mating fittings.
Model | JOV-BFHPS-33 |
|---|---|
Material | SS304/SS316L |
Connection | Thread |
Actuation | Pneumatic |
Specification | 1"-6" |
Product overview

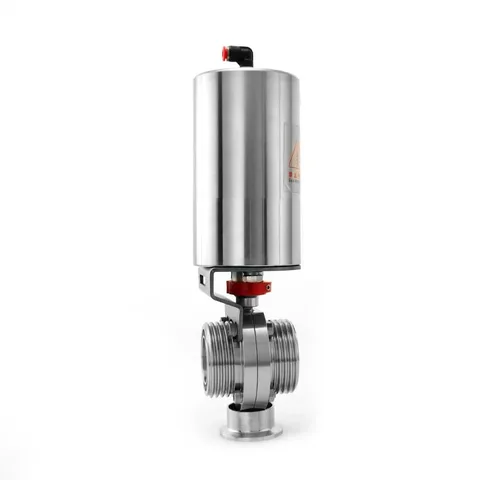

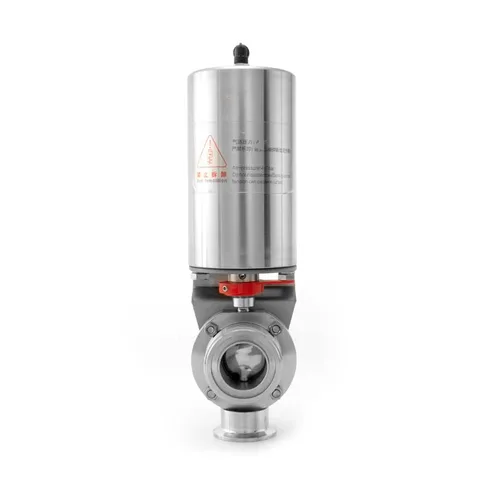

Product structure
A pneumatic actuator forms the operating assembly.
Pneumatic Threaded Butterfly Valve. A butterfly valve controls the line with a rotating disc. The mating connection, sealing arrangement and operating mechanism define the installation.
Selection checks
- Connection profile and nominal size
- Disc and seal requirements
- Manual or actuator interface and operating clearance
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- SS304/SS316L
- Body Material Options
- 1.4404/1.4301, SS304/SS316L
Connections & dimensions
- Connection
- Thread
Construction & finish
- Actuation
- Pneumatic
Product series
- Media / applications
- Water, Oil (Product series)
- Seal material
- EPDM (standard) FPM/SILICON/NBR (Seal materials and configurations)
- Pressure range
- 0-10 bar (Product series)
- Interface standard options
- 3A/DIN/SMS/RJT/ISO/IDF (Product series)
- Control accessory options
- Sensor, C-TOP, C-top controller(AS-I) (Series accessory options)

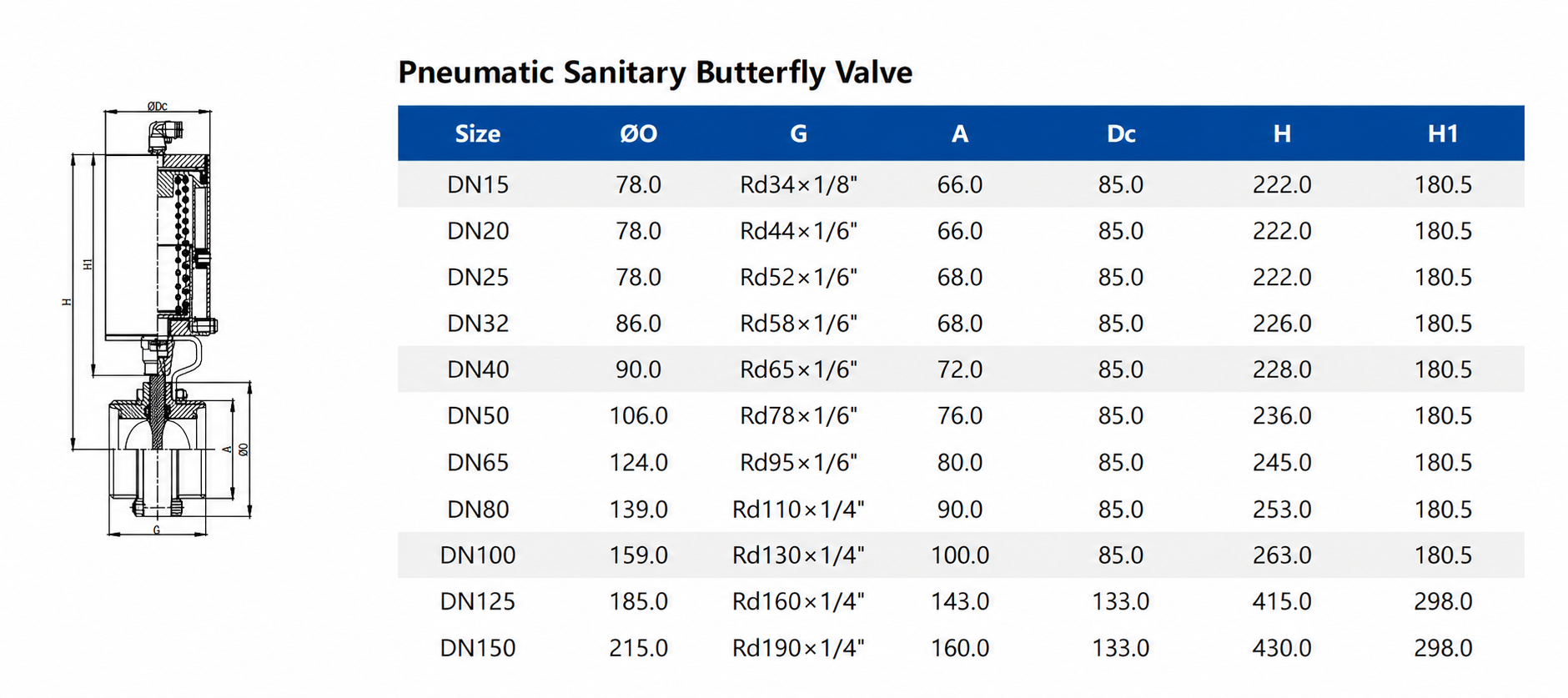

Dimension data and symbol key
Dimension series table
For the structure series and interfaces listed in this table; dimension symbols follow the corresponding diagram.
The table does not label a common unit. Values are retained as printed; compare them with the accompanying drawing.
Size | ØO | G | A | Dc | H | H1 |
|---|---|---|---|---|---|---|
DN15 | 78.0 | Rd34×1/8" | 66.0 | 85.0 | 222.0 | 180.5 |
DN20 | 78.0 | Rd44×1/6" | 66.0 | 85.0 | 222.0 | 180.5 |
DN25 | 78.0 | Rd52×1/6" | 68.0 | 85.0 | 222.0 | 180.5 |
DN32 | 86.0 | Rd58×1/6" | 68.0 | 85.0 | 226.0 | 180.5 |
DN40 | 90.0 | Rd65×1/6" | 72.0 | 85.0 | 228.0 | 180.5 |
DN50 | 106.0 | Rd78×1/6" | 76.0 | 85.0 | 236.0 | 180.5 |
DN65 | 124.0 | Rd95×1/6" | 80.0 | 85.0 | 245.0 | 180.5 |
DN80 | 139.0 | Rd110×1/4" | 90.0 | 85.0 | 253.0 | 180.5 |
DN100 | 159.0 | Rd130×1/4" | 100.0 | 85.0 | 263.0 | 180.5 |
DN125 | 185.0 | Rd160×1/4" | 143.0 | 133.0 | 415.0 | 298.0 |
DN150 | 215.0 | Rd190×1/4" | 160.0 | 133.0 | 430.0 | 298.0 |

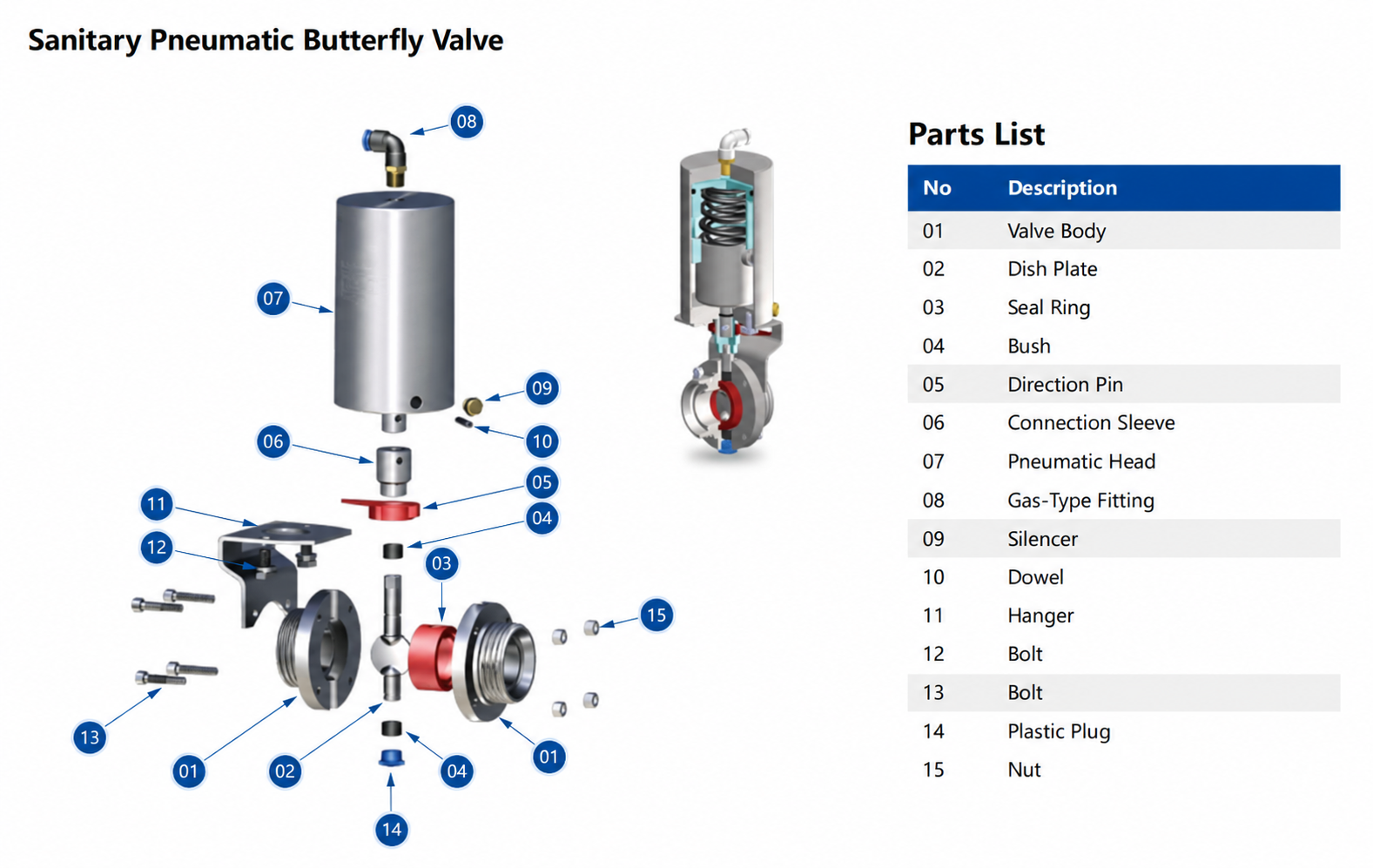

Numbered component list
Numbered components in the threaded pneumatic butterfly valve exploded view.
The table does not label a common unit. Values are retained as printed; compare them with the accompanying drawing.
No | Description |
|---|---|
01 | Valve Body |
02 | Dish Plate |
03 | Seal Ring |
04 | Bush |
05 | Direction Pin |
06 | Connection Sleeve |
07 | Pneumatic Head |
08 | Gas-Type Fitting |
09 | Silencer |
10 | Dowel |
11 | Hanger |
12 | Bolt |
13 | Bolt |
14 | Plastic Plug |
15 | Nut |

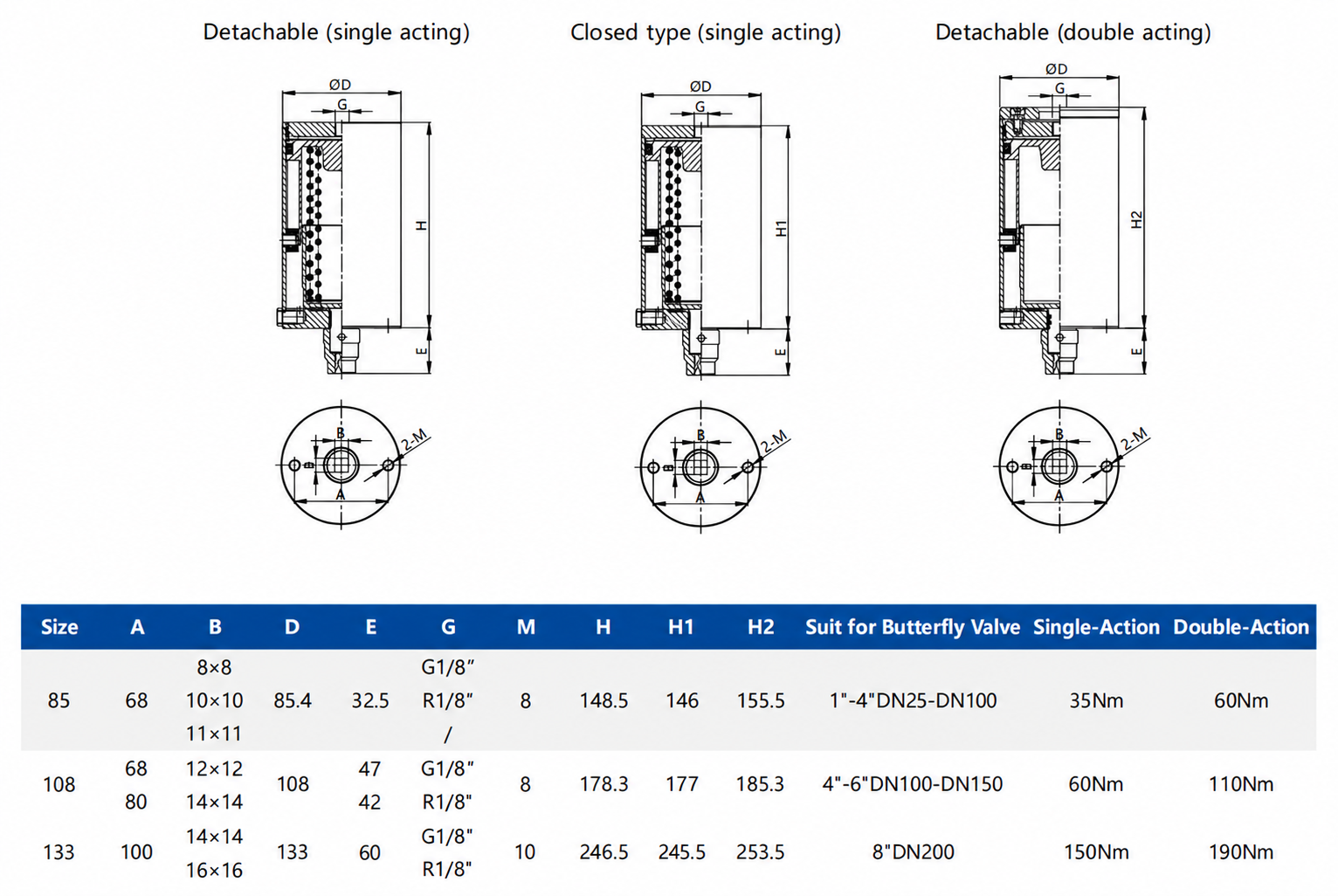

Pneumatic Actuator Dimension & Torque Matching Table (JOA-PS Series)
For cylinder sizes 85, 108, and 133 shown in the actuator structure diagram; semicolon-separated multiline values (A, B, E, air port G) represent available interface options for that cylinder size.
The table does not label a common unit. Values are retained as printed; compare them with the accompanying drawing.
Actuator Size | A | B | D | E | Air Port G | M | H | H1 | H2 | Suit for Butterfly Valve | Single-Action Torque | Double-Action Torque |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
85 | 68 | 8×8;10×10;11×11 | 85.4 | 32.5 | G1/8";R1/8";/ | 8 | 148.5 | 146 | 155.5 | 1"-4"DN25-DN100 | 35Nm | 60Nm |
108 | 68;80 | 12×12;14×14 | 108 | 47;42 | G1/8";R1/8" | 8 | 178.3 | 177 | 185.3 | 4"-6"DN100-DN150 | 60Nm | 110Nm |
133 | 100 | 14×14;16×16 | 133 | 60 | G1/8";R1/8" | 10 | 246.5 | 245.5 | 253.5 | 8"DN200 | 150Nm | 190Nm |
