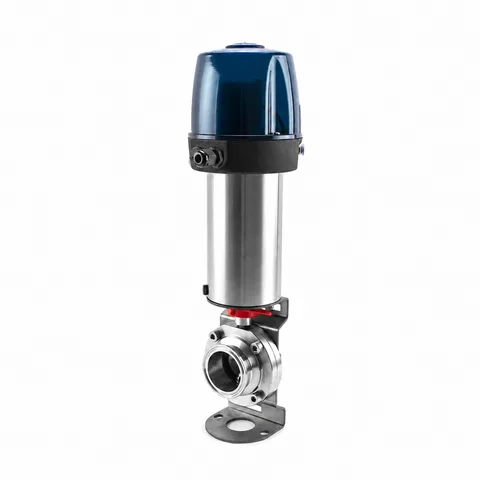

Pneumatic Butterfly Valve with C-TOP Control Head
The pneumatic butterfly valve with C-TOP control head mounts the head above its actuator, which drives the disc through the shaft.
Model | JOV-BFHPSC-22 |
|---|---|
Material | SS304/SS316L |
Connection | Clamped |
Actuation | Pneumatic |
Specification | 1"-6" |
Product overview
Product structure

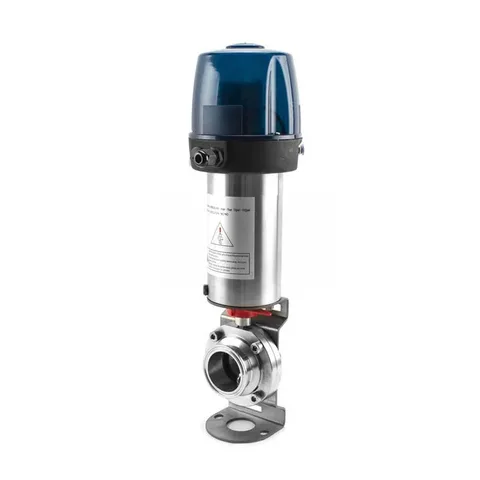

A C-TOP control head is fitted above the pneumatic assembly. A pneumatic actuator forms the operating assembly.
Pneumatic Butterfly Valve with C-TOP Control Head. A butterfly valve controls the line with a rotating disc. The mating connection, sealing arrangement and operating mechanism define the installation.
Selection checks
- Connection profile and nominal size
- Disc and seal requirements
- Manual or actuator interface and operating clearance
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- SS304/SS316L
- Body Material Options
- 1.4404/1.4301, SS304/SS316L
Construction & finish
- Actuation
- Pneumatic
Product series
- Media / applications
- Water, Oil (Product series)
- Seal material
- EPDM (standard) FPM/SILICON/NBR (Seal materials and configurations)
- Pressure range
- 0-10 bar (Product series)
- Interface standard options
- 3A/DIN/SMS/RJT/ISO/IDF (Product series)
- Control accessory options
- Sensor, C-TOP, C-top controller(AS-I) (Series accessory options)
