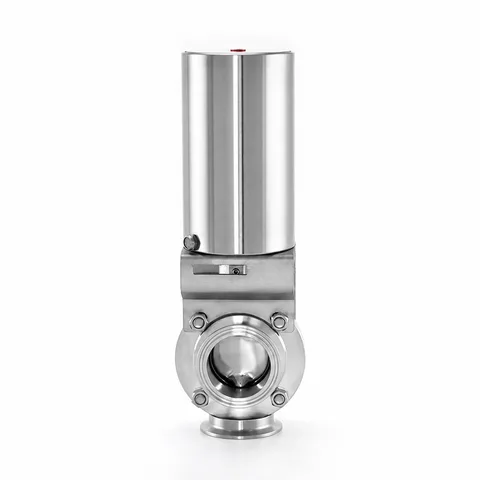

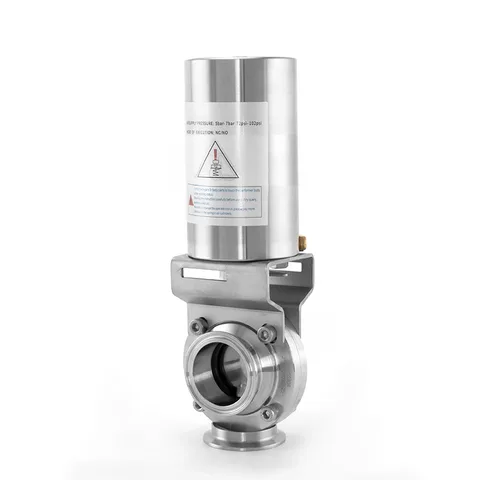

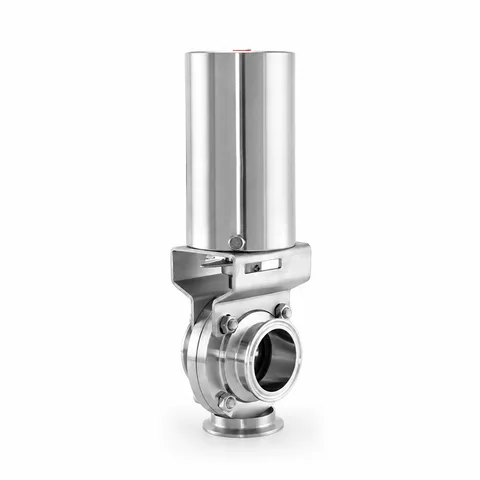

Pneumatic Tri-Clamp Butterfly Valve with Feedback Options
The pneumatic clamp-end butterfly valve has a top actuator and clamp ends, with the actuator driving the disc through the shaft.
Model | JOV-BFHPS-22 |
|---|---|
Material | SS304/SS316L |
Connection | Clamped |
Actuation | Pneumatic |
Specification | 1"-6" |
Product overview
Product structure
A Tri-Clamp joint connects mating ferrules with a separate clamp and gasket. A pneumatic actuator forms the operating assembly. Position-feedback versions have a distinct control arrangement.
Pneumatic Tri-Clamp Butterfly Valve with Feedback Options. A butterfly valve controls the line with a rotating disc. The mating connection, sealing arrangement and operating mechanism define the installation.
Selection checks
- Connection profile and nominal size
- Disc and seal requirements
- Manual or actuator interface and operating clearance
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- SS304/SS316L
- Body Material Options
- 1.4404/1.4301, SS304/SS316L
- Body Material Options
- SS304/SS316L
Connections & dimensions
- Connection
- Clamp
Construction & finish
- Actuation
- Pneumatic
Product series
- Seal material
- EPDM (standard) FPM/SILICON/NBR (Seal materials and configurations)
- Pressure range
- 0-10 bar (Product series)
- Interface standard options
- 3A/DIN/SMS/RJT/ISO/IDF (Product series)
- Control accessory options
- Sensor, C-TOP, C-top controller(AS-I) (Series accessory options)

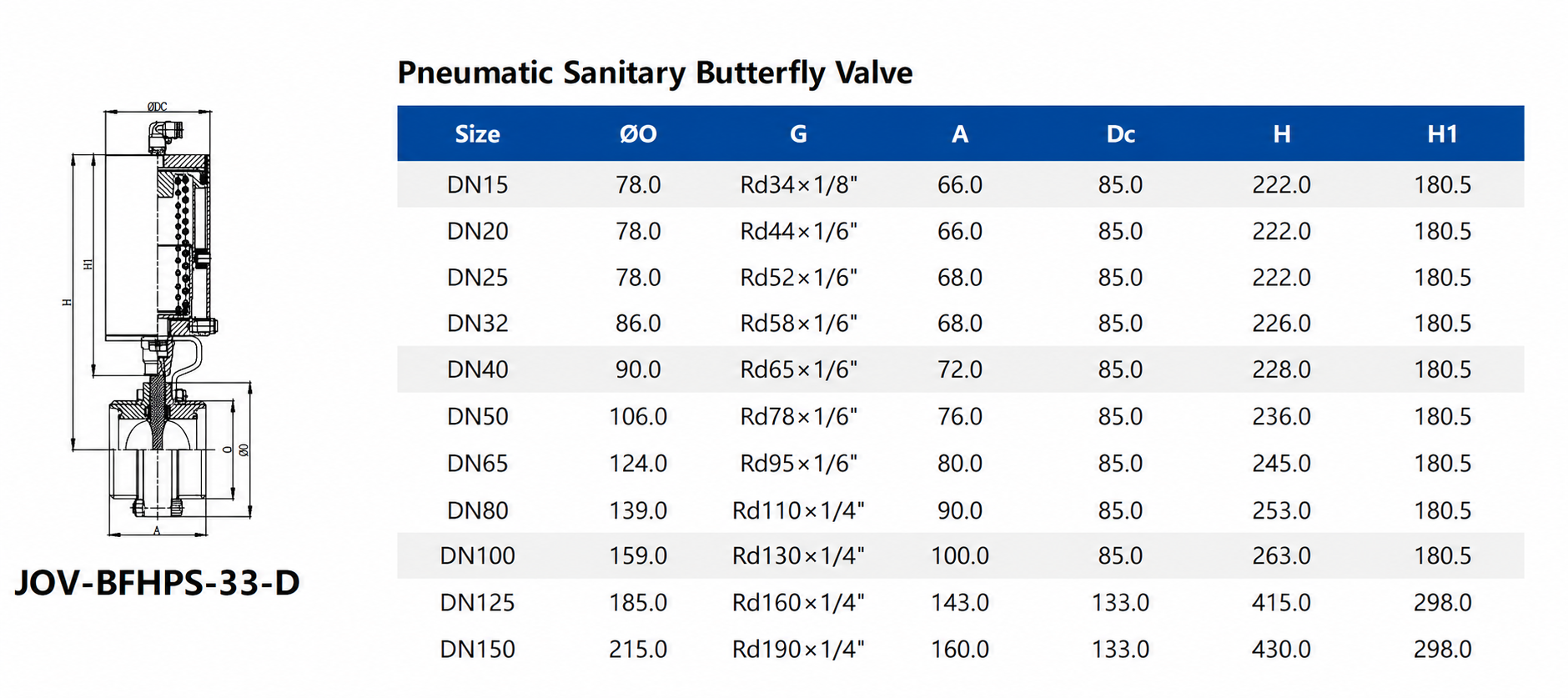

Dimension data and symbol key
Pneumatic Actuator Dimension & Torque Matching Table (JOA-PS Series)
For cylinder sizes 85, 108, and 133 shown in the actuator structure diagram; semicolon-separated multiline values represent available interface options for that cylinder size.
The table does not label a common unit. Values are retained as printed; compare them with the accompanying drawing.
Actuator Size | A | B | D | E | Air Port G | M | H | H1 | H2 | Suit for Butterfly Valve | Single-Action Torque | Double-Action Torque |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
85 | 68 | 8×8;10×10;11×11 | 85.4 | 32.5 | G1/8";R1/8";/ | 8 | 148.5 | 146 | 155.5 | 1"-4"DN25-DN100 | 35Nm | 60Nm |
108 | 68;80 | 12×12;14×14 | 108 | 47;42 | G1/8";R1/8" | 8 | 178.3 | 177 | 185.3 | 4"-6"DN100-DN150 | 60Nm | 110Nm |
133 | 100 | 14×14;16×16 | 133 | 60 | G1/8";R1/8" | 10 | 246.5 | 245.5 | 253.5 | 8"DN200 | 150Nm | 190Nm |
