Pneumatic Three-Piece Weld-End Butterfly Valve

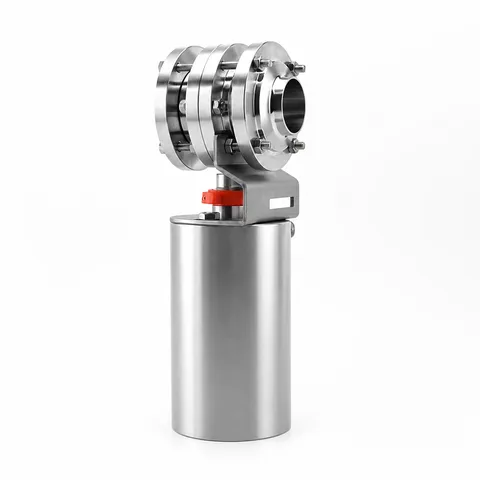

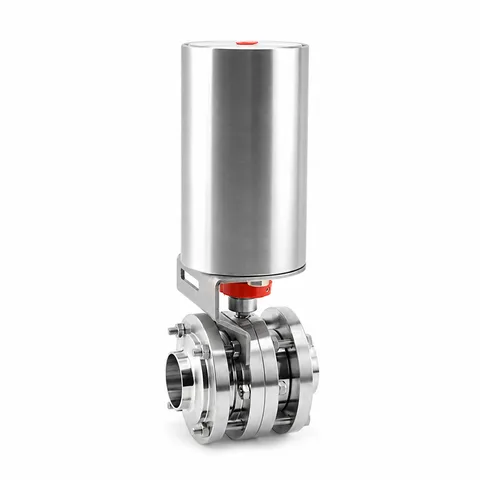

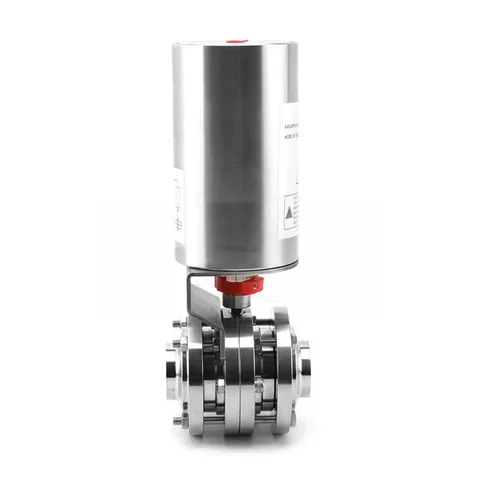

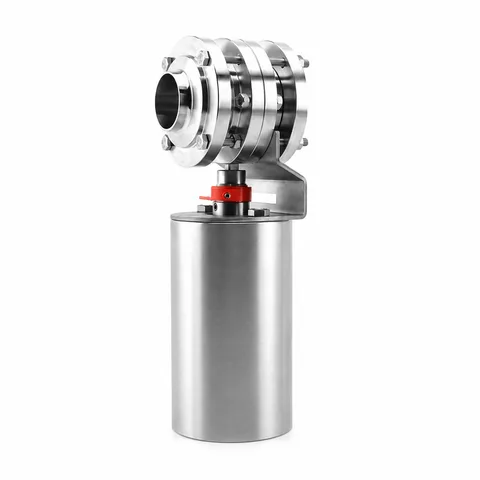

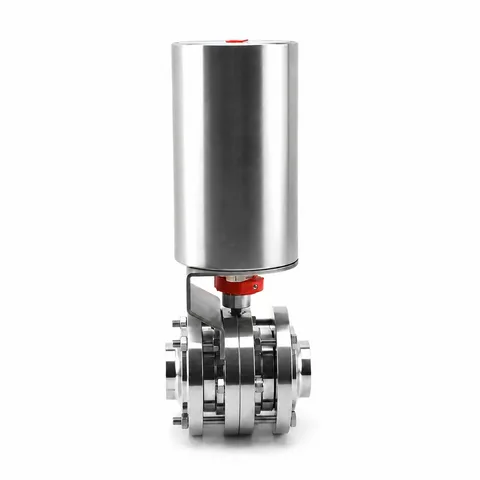

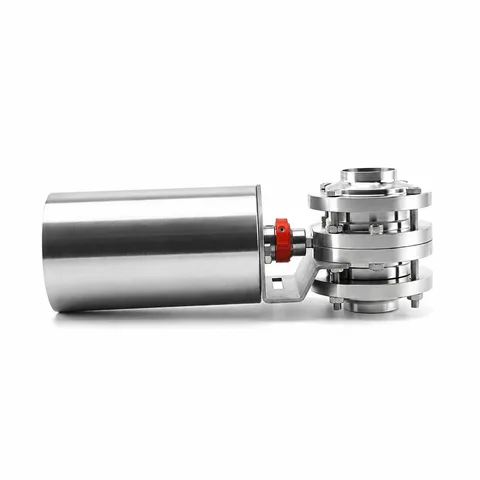

The pneumatic three-piece weld-end butterfly valve mounts an actuator above a central body joined to welding end sections on both sides.
Model | JOV-BFH3PPS-11 |
|---|---|
Material | SS304/SS316L |
Connection | Welding |
Actuation | Pneumatic |
Type | Three Pieces |
Specification | 1"-4" |
Product overview
Product structure
The weld ends form the pipe-side joints. The body is arranged in three pieces. A pneumatic actuator forms the operating assembly.
Pneumatic Three-Piece Weld-End Butterfly Valve. A butterfly valve controls the line with a rotating disc. The mating connection, sealing arrangement and operating mechanism define the installation.
Selection checks
- Connection profile and nominal size
- Disc and seal requirements
- Manual or actuator interface and operating clearance
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- SS304/SS316L
- Body Material Options
- 1.4404/1.4301, SS304/SS316L
Connections & dimensions
- Connection
- Welding
- Connection
- weld
Construction & finish
- Actuation
- Pneumatic
Product series
- Media / applications
- Water, Oil (Product series)
- Seal material
- EPDM (standard) FPM/SILICON/NBR (Seal materials and configurations)
- Pressure range
- 0-10 bar (Product series)
- Interface standard options
- 3A/DIN/SMS/RJT/ISO/IDF (Product series)
- Control accessory options
- Sensor, C-TOP, C-top controller(AS-I) (Series accessory options)
Dimension data and symbol key

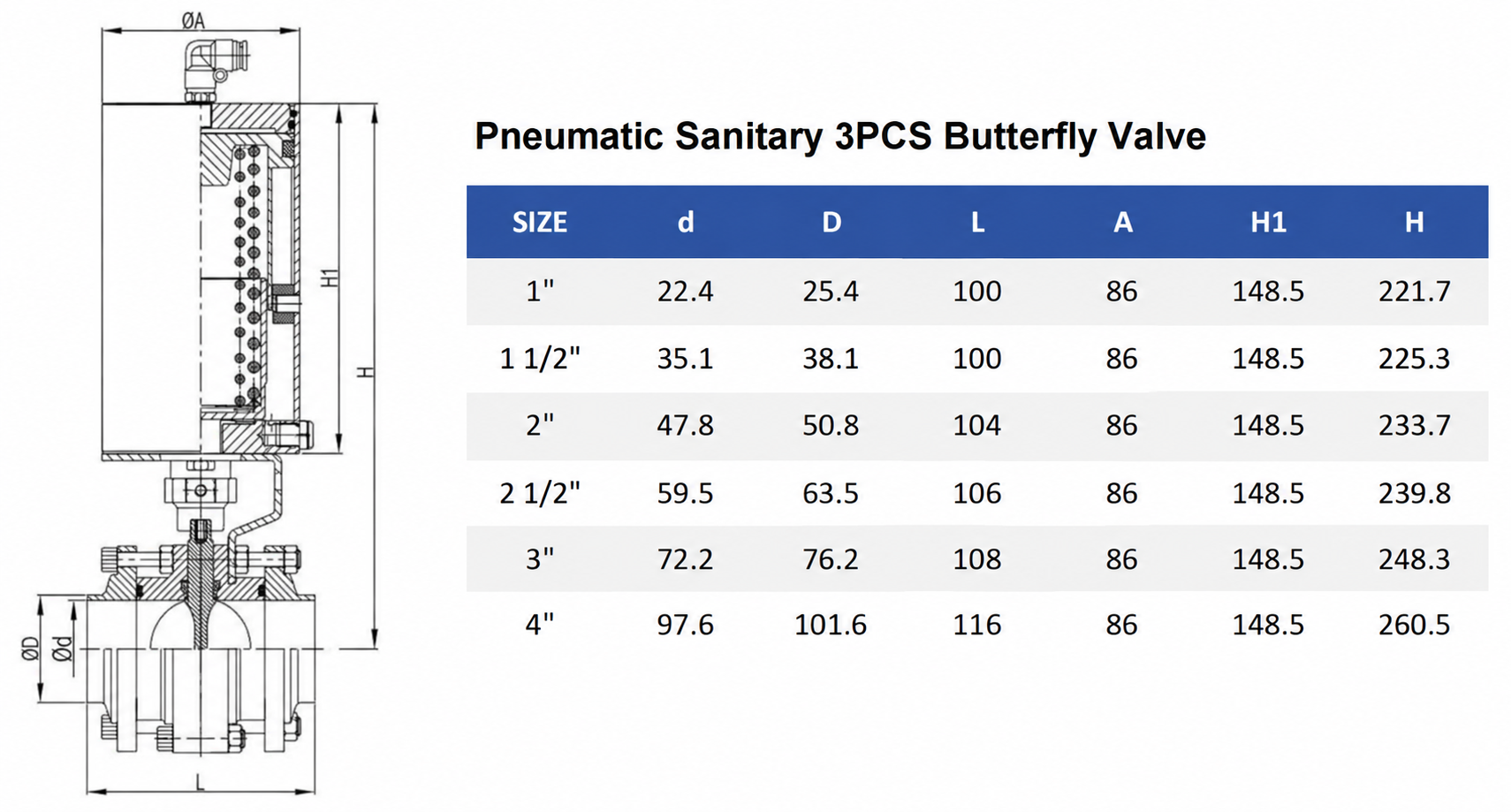

Weld-end pneumatic three-piece valve dimensions
Dimension comparison from the product page.
The table does not label a common unit. Values are retained as printed; compare them with the accompanying drawing.
d — Bore diameter
D — Weld-end outside diameter
L — End-to-end length
A — Actuator diameter
H1 — Actuator cylinder height
H — Pipe centreline to actuator top
SIZE | d | D | L | A | H1 | H |
|---|---|---|---|---|---|---|
1" | 22.4 | 25.4 | 100 | 86 | 148.5 | 221.7 |
1 1/2" | 35.1 | 38.1 | 100 | 86 | 148.5 | 225.3 |
2" | 47.8 | 50.8 | 104 | 86 | 148.5 | 233.7 |
2 1/2" | 59.5 | 63.5 | 106 | 86 | 148.5 | 239.8 |
3" | 72.2 | 76.2 | 108 | 86 | 148.5 | 248.3 |
4" | 97.6 | 101.6 | 116 | 86 | 148.5 | 260.5 |
