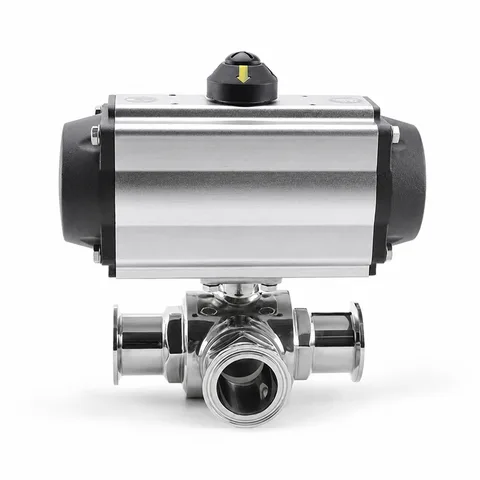

Pneumatic Three-Way Tri-Clamp Ball Valve with Feedback / Pilot Options
The pneumatic three-way clamp ball valve uses a horizontal drive to control ball passages through three ports, with feedback and pilot options in the series.
Model | BVHE-11 |
|---|---|
Material | SS304/SS316L |
Connection | Welding |
Actuation | Pneumatic |
Specification | 1/2"-4" |
Product overview
Product structure
A Tri-Clamp joint connects mating ferrules with a separate clamp and gasket. Three ports form the valve flow arrangement. A pneumatic actuator forms the operating assembly.
Pneumatic Three-Way Tri-Clamp Ball Valve with Feedback / Pilot Options. A ball valve controls a flow path through a rotating ball. Match the product’s port arrangement, connections and actuation to the pipework.
Selection checks
- Port arrangement and flow path
- End connections and bore dimensions
- Seat, seal and actuator requirements
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- SS304/SS316L
- Material Options
- SS316L
- Body Material Options
- AISI304 Or AISI316L
- Body Material Options
- AISI316L
- Body Material Options
- SS304/SS316L
Connections & dimensions
- Connection
- Clamp
Construction & finish
- Actuation
- Manual,Pneumatic,Electric
Product series
- Media / applications
- Water, Oil (Product series)
- Seal material
- EPDM (standard)/SILICON/NBR (Seal materials and configurations)
- Pressure range
- 0-10 bar (Product series)
- Interface standard options
- 3A/DIN/SMS/RJT/ISO/IDF (Product series)
Need a different size, connection or document?
Discuss your requirements
