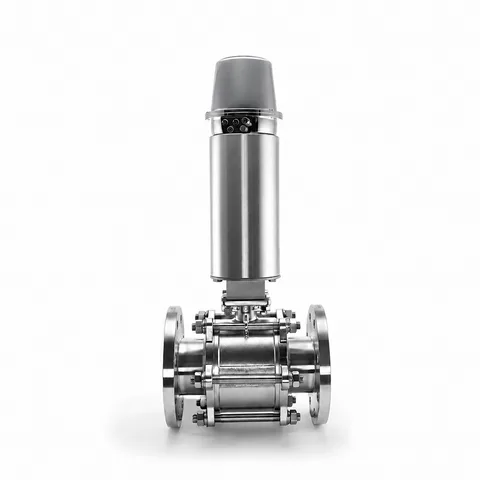

Pneumatic Flanged Ball Valve with Feedback Options
The pneumatic flanged ball valve combines a top drive and an assembled body with end flanges for mating piping.
Material | SS304/SS316L |
|---|---|
Connection | Flanged |
Actuation | Pneumatic |
Body construction | Three-piece |
Product overview
Product structure

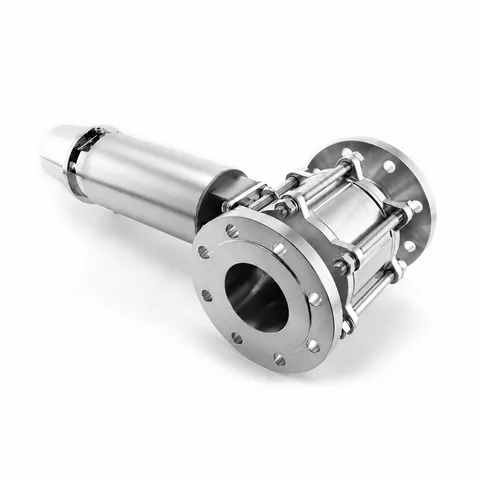

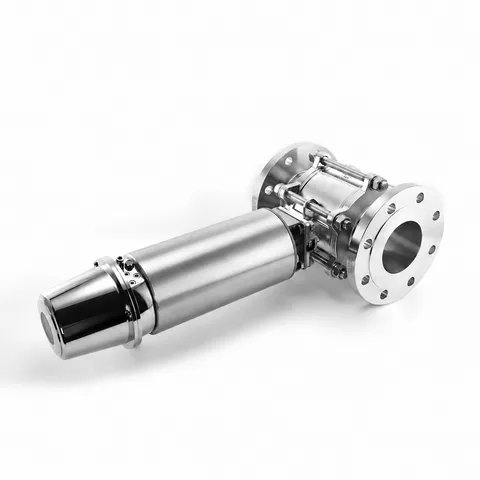

Flanged ends form the mating pipe connections. A pneumatic actuator forms the operating assembly. Position-feedback versions have a distinct control arrangement.
Pneumatic Flanged Ball Valve with Feedback Options. A ball valve controls a flow path through a rotating ball. Match the product’s port arrangement, connections and actuation to the pipework.
Selection checks
- Port arrangement and flow path
- End connections and bore dimensions
- Seat, seal and actuator requirements
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- AISI304, AISI316L
- Material Options
- SS304/SS316L
- Body Material Options
- SS304/SS316L
Connections & dimensions
- Connection
- Flange
Construction & finish
- Actuation
- Pneumatic
Product series
- Pressure range
- 0-10 bar (Product series)
- Seal material
- PTFE (Seal materials and configurations)
- Interface standard options
- 3A/DIN/SMS/RJT/ISO/IDF (Product series)
