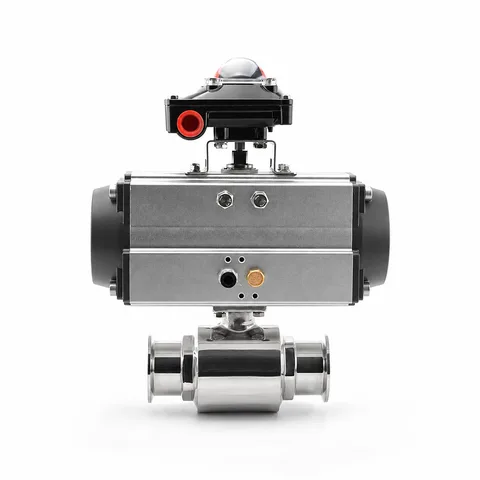

Pneumatic Tri-Clamp Ball Valve with Feedback / Pilot Options
The pneumatic clamp ball valve with feedback or pilot options combines a horizontal actuator and clamp pipe ends.
Model | BVQH-22 |
|---|---|
Material | SS304/SS316L |
Connection | Clamped |
Actuation | Pneumatic |
Specification | 1"-6" |
Product overview
Product structure
A Tri-Clamp joint connects mating ferrules with a separate clamp and gasket. A pneumatic actuator forms the operating assembly. Position-feedback versions have a distinct control arrangement.
Pneumatic Tri-Clamp Ball Valve with Feedback / Pilot Options. A ball valve controls a flow path through a rotating ball. Match the product’s port arrangement, connections and actuation to the pipework.
Selection checks
- Port arrangement and flow path
- End connections and bore dimensions
- Seat, seal and actuator requirements
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- AISI304, AISI316L
- Material Options
- SS304/SS316L
Product series
- Media / applications
- Water, Oil (Product series)
- Seal material
- PTFE (Seal materials and configurations)
- Pressure range
- 0-10 bar (Product series)
- Interface standard options
- DIN/SMS/3A/ISO/IDF/RJT (Product series)
