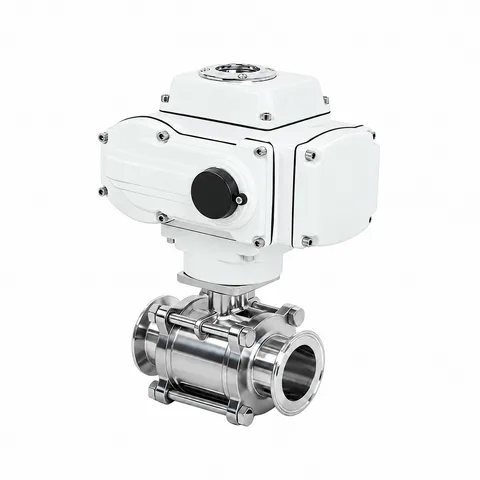

Electric Three-Piece Tri-Clamp Ball Valve
The electric three-piece clamp ball valve combines a top electric actuator with a central body and end sections.
Model | JOV-BHPA2008E-11 |
|---|---|
Material | SS304/SS316L |
Connection | Welding |
Actuation | Electric |
Body construction | Three-piece |
Specification | 1/2"-4" |
Product overview
Product structure
A Tri-Clamp joint connects mating ferrules with a separate clamp and gasket. The body is arranged in three pieces. An electric actuator forms the operating assembly.
Electric Three-Piece Tri-Clamp Ball Valve. A ball valve controls a flow path through a rotating ball. Match the product’s port arrangement, connections and actuation to the pipework.
Selection checks
- Port arrangement and flow path
- End connections and bore dimensions
- Seat, seal and actuator requirements
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- SS304/SS316L
- Body Material Options
- SS304/SS316L
Construction & finish
- Actuation
- Electric
Product series
- Media / applications
- Water, Oil (Product series)
- Seal material
- EPDM (standard)/SILICON/NBR (Seal materials and configurations)
- Pressure range
- 0-10 bar (Product series)
- Interface standard options
- 3A/DIN/SMS/RJT/ISO/IDF (Product series)
