Pneumatic Weld-End Angle Seat Valve, Stainless Steel Actuator

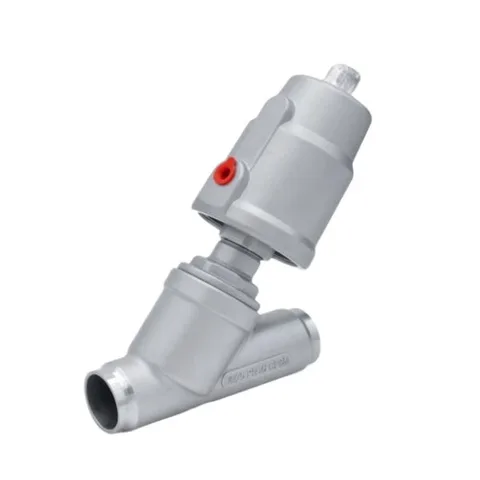

The stainless steel actuator on this weld-end pneumatic angle-seat valve is inclined above a body with welding tube ends for pipe connections.
Model | JOV-ASPS-11 |
|---|---|
Material | SS304, SS316 |
Connection | Butt Weld |
Actuation | Pneumatic |
Product overview
Product structure
The actuator housing is identified as stainless steel. The weld ends form the pipe-side joints. A pneumatic actuator forms the operating assembly.
Pneumatic Weld-End Angle Seat Valve, Stainless Steel Actuator. An angle seat valve has an inclined valve body and an operating assembly. Match the stated operating principle and control interface to the installation.
Selection checks
- Flow direction and operating principle
- Control mode and pneumatic interface
- Seat, seals and end connections
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- SS304, SS316
- Body Material Options
- 304, 316, 316L.
- Spool Material Options
- 304, 316, 316L.
Connections & dimensions
- Connection
- Butt Weld
- Connection
- Welding
Construction & finish
- Actuation
- Pneumatic
Product series
- Control modes
- normally close, normally open, double acting. (Product series)
- Actuator housing options
- stainless steel, polyamide. (Series actuator)
- Pneumatic accessory options
- limit switch, positioner, solenoid valve, filter relief-pressure valve, manual operating device. (Series accessory options)
- Seal configurations and media temperature
- PTFE:-30~+180 F46:-30~+220 °C (Seal materials and configurations)
- Ambient temperature
- -30~+80 °C (Product series)
- Nominal pressure
- 1.0~1.6 MPa (Product series)
- Spool material
- 304, 316, 316L. (Series spool)
- Seal material
- PTFE,F46. (Seal materials and configurations)
- Series nominal sizes
- DN15–DN100 (Angle seat valve series)
