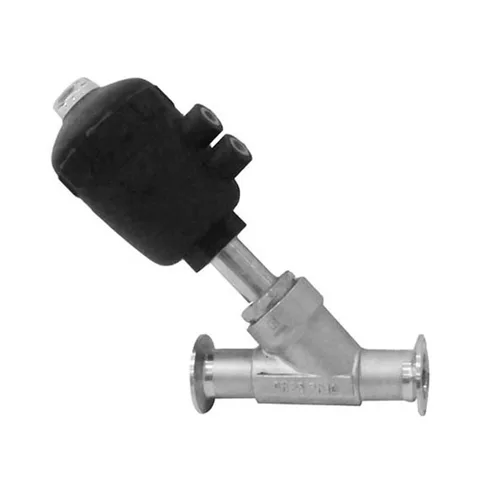

Pneumatic Tri-Clamp Angle Seat Valve, Plastic Actuator
This clamp-end angle-seat valve has an inclined plastic pneumatic actuator and clamp connections at both ends of the body.
Model | JOV-ASPP-22 |
|---|---|
Material | SS304, SS316 |
Connection | Clamped |
Actuation | Pneumatic |
Product overview
Product structure
The actuator housing is identified as plastic. A Tri-Clamp joint connects mating ferrules with a separate clamp and gasket. A pneumatic actuator forms the operating assembly.
Pneumatic Tri-Clamp Angle Seat Valve, Plastic Actuator. An angle seat valve has an inclined valve body and an operating assembly. Match the stated operating principle and control interface to the installation.
Selection checks
- Flow direction and operating principle
- Control mode and pneumatic interface
- Seat, seals and end connections
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- SS304, SS316
- Body Material Options
- 304, 316, 316l.
- Spool Material Options
- 304, 316, 316l.
Construction & finish
- Actuation
- Pneumatic
Product series
- Ambient temperature
- -30~+80 °C (Product series)
- Nominal pressure
- 1.0~1.6 MPa (Product series)
- Spool material
- 304, 316, 316l. (Series spool)
- Seal material
- PTFE, F46. (Seal materials and configurations)
- Series nominal sizes
- DN15–DN100 (Angle seat valve series)
