Extended Pneumatic Filling Valve
The extended pneumatic filling valve combines a pneumatic actuator with a long filling tube and an outlet along the tube axis.
Material | SS304, SS316 |
|---|---|
Connection | Female |
Actuation | Pneumatic |
Product overview
Product structure

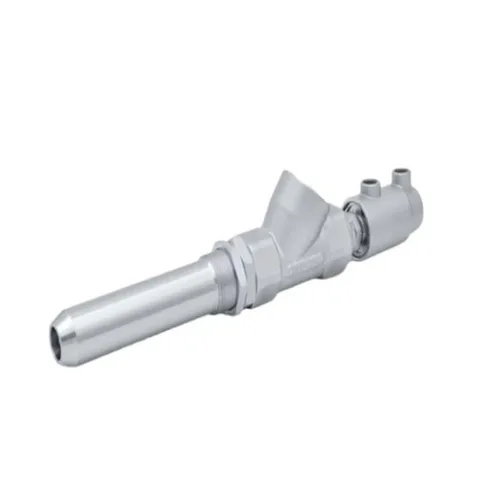

The extended outlet projects from the operating valve body. The outlet section is distinct from the pneumatic actuator above the valve.
Extended Pneumatic Filling Valve. An angle seat valve has an inclined valve body and an operating assembly. Match the stated operating principle and control interface to the installation.
Selection checks
- Flow direction and operating principle
- Control mode and pneumatic interface
- Seat, seals and end connections
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- SS304, SS316
- Body Material Options
- 304, 316, 316L.
- Spool Material Options
- 304, 316, 316L.
- Cylinder Material Options
- stainless steel, polyamide.
Construction & finish
- Actuation
- Pneumatic
Product series
- Control modes
- normally close, normally open, double acting. (Product series)
- Actuator housing options
- stainless steel, polyamide. (Series actuator)
- Pneumatic accessory options
- limit switch, positioner, solenoid valve, filter relief-pressure valve, manual operating device. (Series accessory options)
- Seal configurations and media temperature
- PTFE:-30~+180 F46:-30~+220 °C (Seal materials and configurations)
- Ambient temperature
- -30~+80 °C (Product series)
- Nominal pressure
- 1.0~1.6 MPa (Product series)
- Spool material
- 304, 316, 316L. (Series spool)
- Seal material
- PTFE,F46. (Seal materials and configurations)
