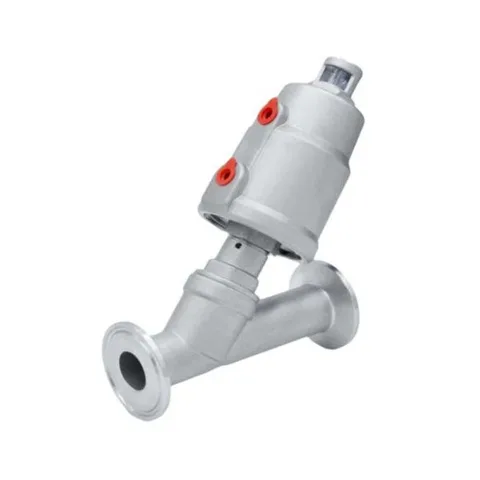

Pneumatic Tri-Clamp Angle Seat Valve, Stainless Steel Actuator
This clamp-end angle-seat valve mounts a stainless steel pneumatic actuator at an angle to the body, with clamp interfaces for mating pipework at both ends.
Model | JOV-ASPS-22 |
|---|---|
Material | SS304, SS316 |
Connection | Clamped |
Actuation | Pneumatic |
Product overview
Product structure
The actuator housing is identified as stainless steel. A Tri-Clamp joint connects mating ferrules with a separate clamp and gasket. A pneumatic actuator forms the operating assembly.
Pneumatic Tri-Clamp Angle Seat Valve, Stainless Steel Actuator. An angle seat valve has an inclined valve body and an operating assembly. Match the stated operating principle and control interface to the installation.
Selection checks
- Flow direction and operating principle
- Control mode and pneumatic interface
- Seat, seals and end connections
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- SS304, SS316
- Body Material Options
- 304, 316, 316l.
- Spool Material Options
- 304, 316, 316l.
Product series
- Ambient temperature
- -30~+80 °C (Product series)
- Nominal pressure
- 1.0~1.6 MPa (Product series)
- Spool material
- 304, 316, 316l. (Series spool)
- Seal material
- PTFE, F46. (Seal materials and configurations)
- Series nominal sizes
- DN15–DN100 (Angle seat valve series)
